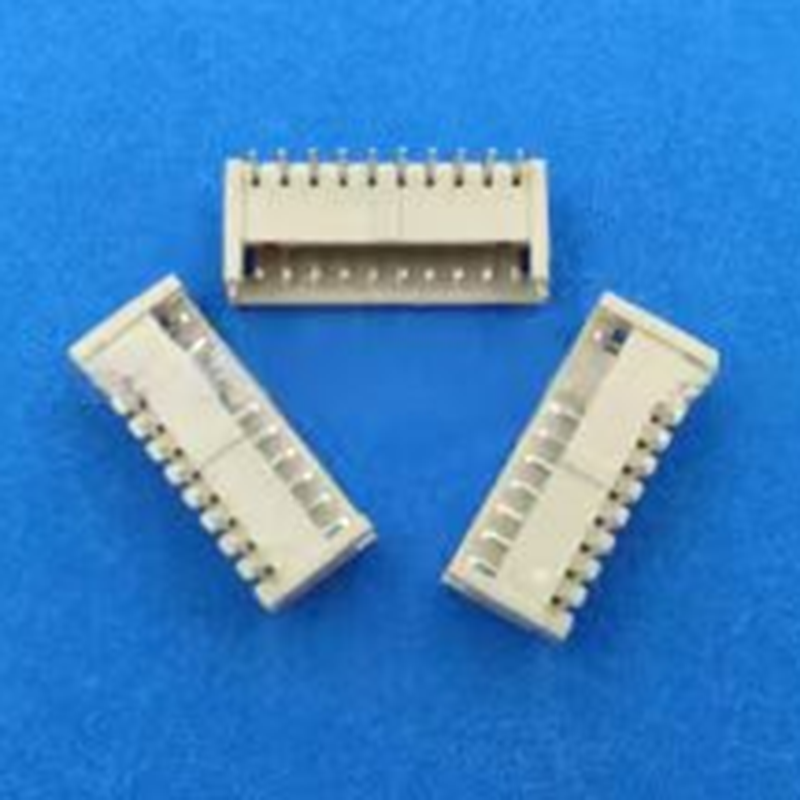

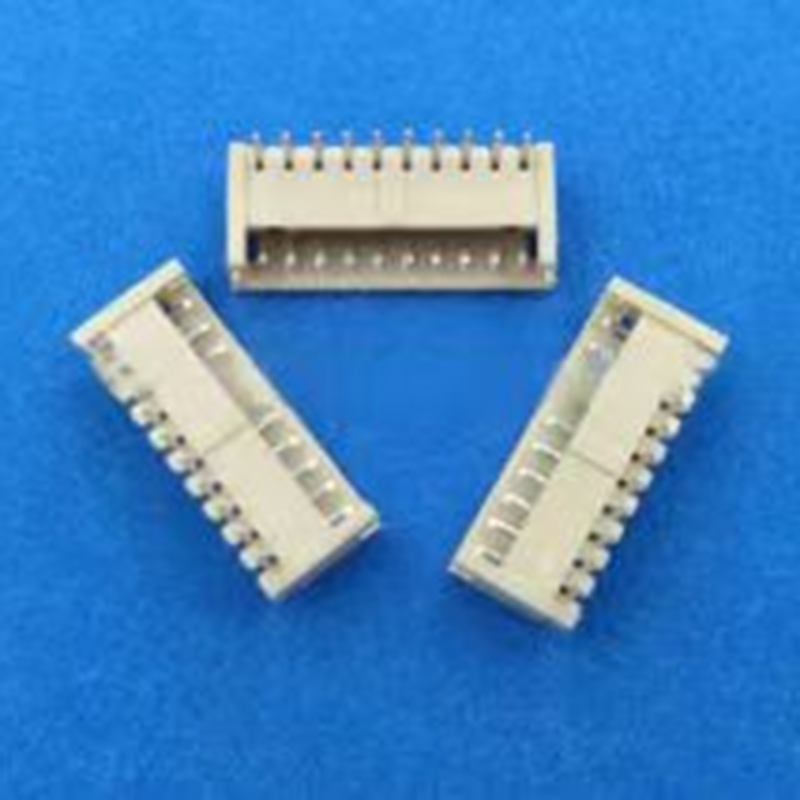

1.25mm Pitch Right-angle Type PCB Connector Male Connector Shrouded Header

Short Description:

Pitch: 1.25mm
Color: Beige
Connector type: Header
Housing materials: Nylon 66, UL94V-0
Pin materials: Brass/tin-plated
Circuits: 2 to 15 positions
Locking style: Friction
Connector orientation: Right-angle
Mounting side: Standard on-board
Mounting type: Wire to board type
Packing type: Tube
Suitable wafer: A1252H single row series


Product Detail

Product Tags

Product Description

China PCB Assembly

1. Basic information:

  • Pitch: 1.25mm
  • Color: Beige
  • Connector type: Header
  • Housing materials: Nylon 66, UL94V-0
  • Pin materials: Brass/tin-plated
  • Circuits: 2 to 15 positions
  • Locking style: Friction
  • Connector orientation: Right-angle
  • Mounting side: Standard on-board
  • Mounting type: Wire to board type
  • Packing type: Tube
  • Suitable wafer: A1252H single row series
Military control system

2. Electrical characteristics:

  • Current rating: 1A AC/DC
  • Voltage rating: 150V AC/DC
  • Contact-resistance: 30mΩ max
  • Insulation-resistance: 500MΩ
  • Withstanding voltage: 500V AC/minute
Security monitoring equipment control system

3. Mechanical characteristics:

  • Temperature range: -25 to +85°C
  • Terminal insertion force: 0.5kgf (max)
  • Terminal/housing retention force: 0.5kgf (minute)
  • Pin retention force: 0.5kgf (minute)
