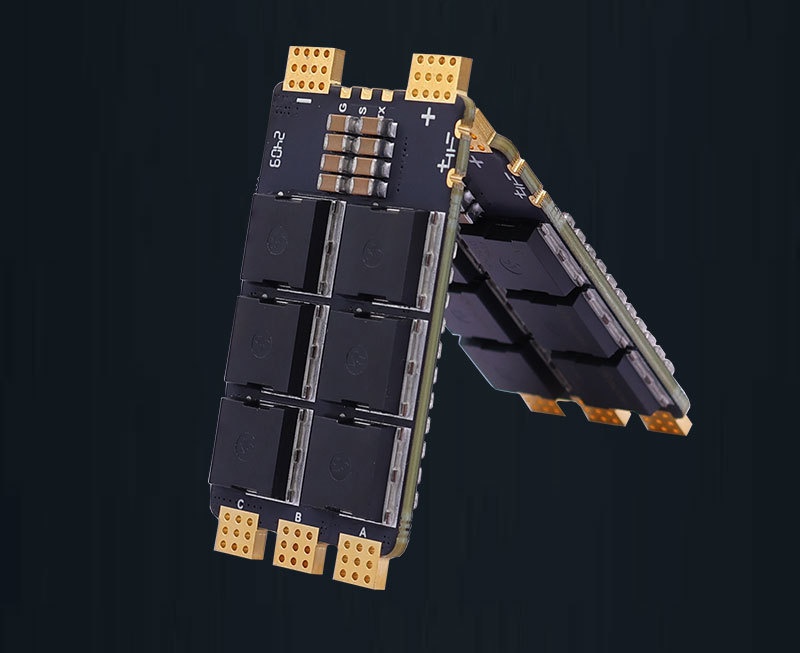

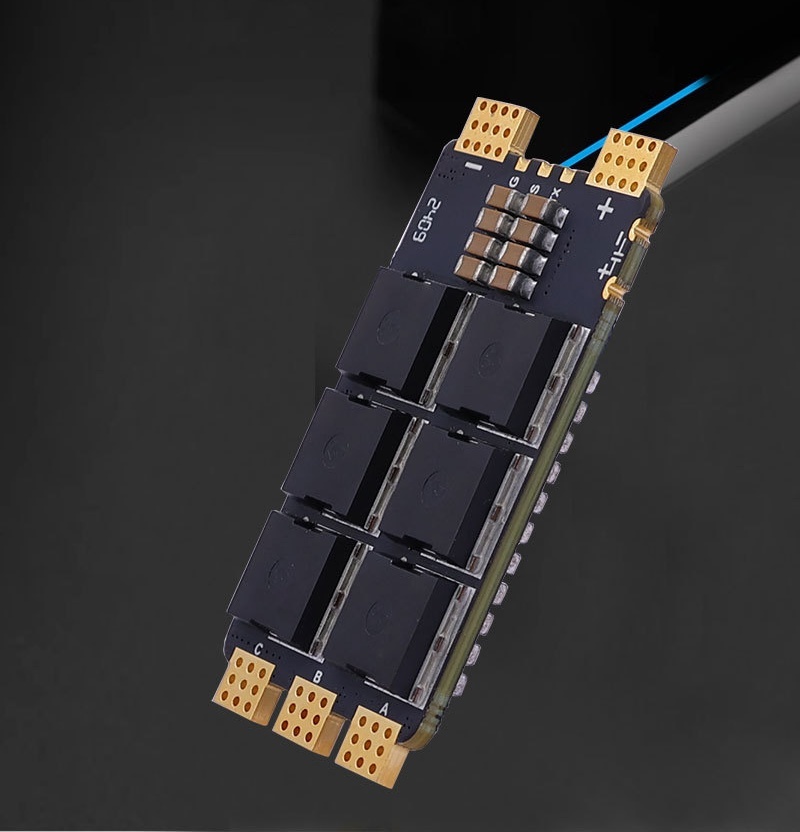

120a unmanned aerial vehicle (UAV) FPV power adapter 7155 120A brush-less single power adapter

Material CB

Origin: Shenzhen

Product category: UAV electric modulation

Electric: No

Function or not: No

3C Configuration Category: Toys over 14 years old

Color: Black

Applicable age: Youth (15-35 years old)

Metallized edge design

Avoid PCB pad falling off during use

Double pad design

Cost-effective factory professional manufacturing work more stable

Support Damped Lig technology

Let the battery recover power, extend the flight time

Stable performance and wide use:Traversing machine,Industrial machinery,Model airplanes

Product features:

1.8 layers of 3oZ thickened copper, stronger over-current capacity, good heat dissipation

2.STM32G071G8U6 main control, chip operating frequency up to 64MHz

3. Imported 80V high current resistance mos, long life and strong load capacity

4. Industrial grade LDO, more resistant to high temperature

5. High quality Murata capacitor, strong filtering performance

6. Magic LED lights, programmable magic LED lights

Electric modulation parameter

Continuous current: 120A

Peak current: 140A

STM: STM32G071G8U6

Product size: 55*28mm

Weight: 21g

Input voltage: 6S-12S Lipo

Electrical firmware: G071-2023 Multi 32100.Hex

Protocol support: PWM, Oneshot125 Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

Driver: SLM21867CA-DG

Electric modulation parameter

Note: The dimensions and weights shown on the product page are for reference only. The actual data may change due to product updates, different batches or individual differences, etc. Please refer to the actual data.
