Beidou positioning navigation module GPS positioning module UAV high precision GPS navigation locator

M10 GPS

Compass integrated module

● Multi-mode satellite positioning navigation

●GNSS positioning module

Product introduction

The M10GPS module adopts the latest generation chip M10 of ∪blox, which has strong performance and faster star search speed. Up to 32 satellites can be used to locate the accurate and high-performance on-board geomagnetic compass sensor QMC5883.

Module size is only 25*25*8mm, small and easy to install using high-performance small size antenna, miniaturized design, performance does not shrink. With a light weight of 1 2.35g, it is ideal for light fixed-wing use in small traversal aircraft.

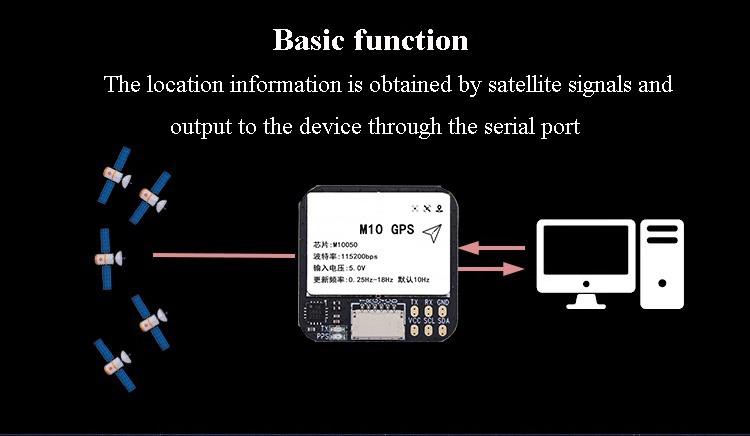

Basic function

The location information is obtained by satellite signals and output to the device through the serial port

All three kinds of positioning in one, better navigation

GPS + BDS+GALILEO joint positioning

Flexible choice, can choose to use

Select the positioning mode, you can select the single mode positioning and multi-mode combination positioning according to the project requirements

Product characteristics

1.Lightweight and compact: small size, low power consumption, easy to use

2.Compact size :25*25*8mm

3.Light: Weight ≤12.35g

4.Voltage :3.6-5.5V Typical :5V

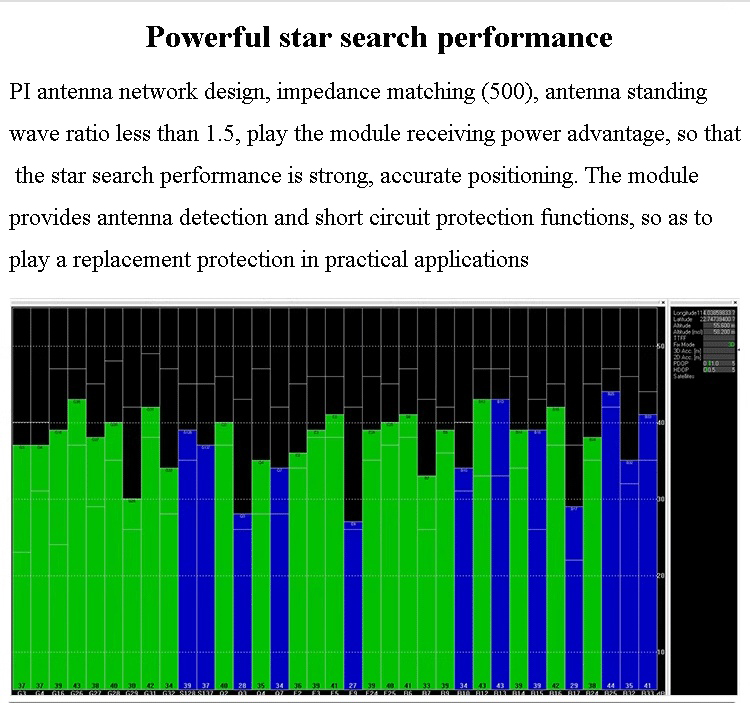

5.Powerful star search performance

PI antenna network design, impedance matching (500), antenna standing wave ratio less than 1.5, play the module receiving power advantage, so that the star search performance is strong, accurate positioning. The module provides antenna detection and short circuit protection functions, so as to play a replacement protection in practical applications

6.FLASH support

The configuration can be changed without loss after power failure

7.High sensitivity

The high sensitivity feature has a stronger ability to capture weak signals and maintain a stable communication connection

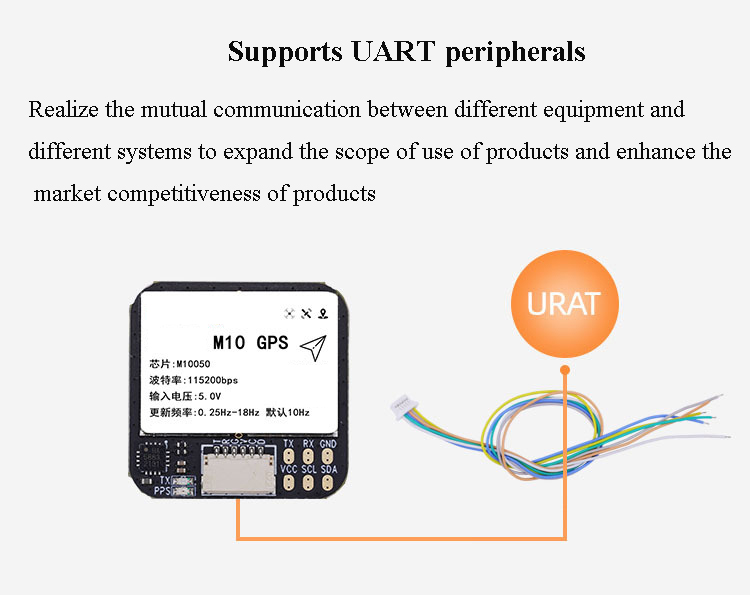

8.Supports UART peripherals

Realize the mutual communication between different equipment and different systems to expand the scope of use of products and enhance the market competitiveness of products

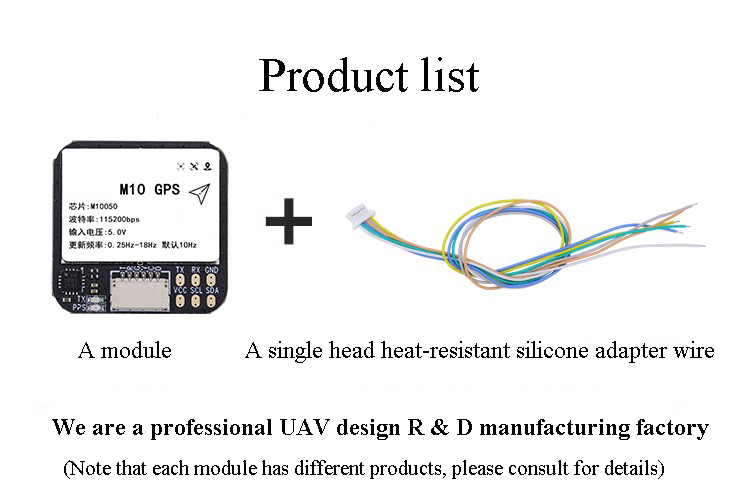

Product list

Module *1+ Single silicon high temperature silicone conversion cable *1
