CC2500 bare chip Bond 2.4G wireless transmitting and receiving module SPI UAV ship model flight control remote control module

CC2500 small volume module
2.4G wireless module
2400-2483. 5MHz
1.2-500 KBPS
High speed, small size
High cost performance
Support FSK,GFSK,MSK,OOK modulation mode
Provide information and technical support

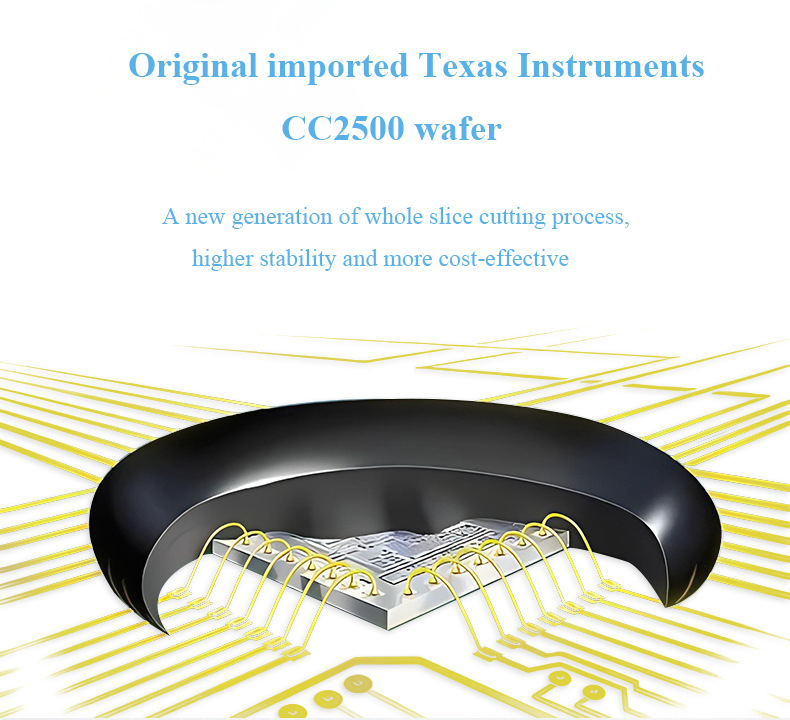

Original chip
Focus on radio frequency. Committed to the Internet of Things

CC2500 bare chip module
2.4G radio module
2400-2483.5 MHZ
1.2-500 KBPS

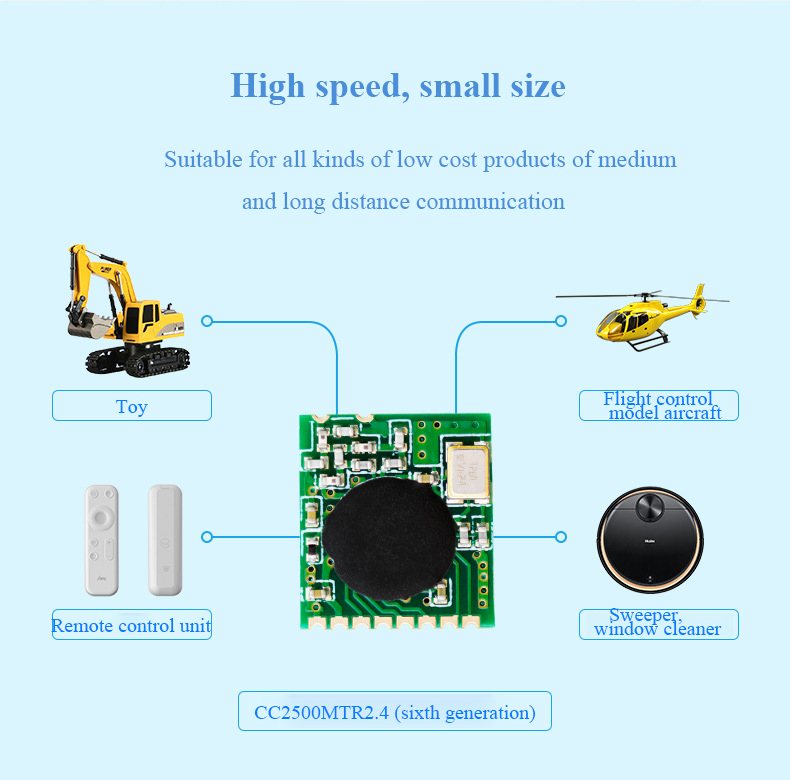

High speed, small size
High cost performance
Support FSK,GFSK,MSK,00K modulation mode
Provide information and technical support
Original chip
Focus on radio frequency ● Committed to the Internet of Things

Parameters can be set freely
And support Manchester coding, more flexible use
Power :0dBm
Speed :1.2-500kbps

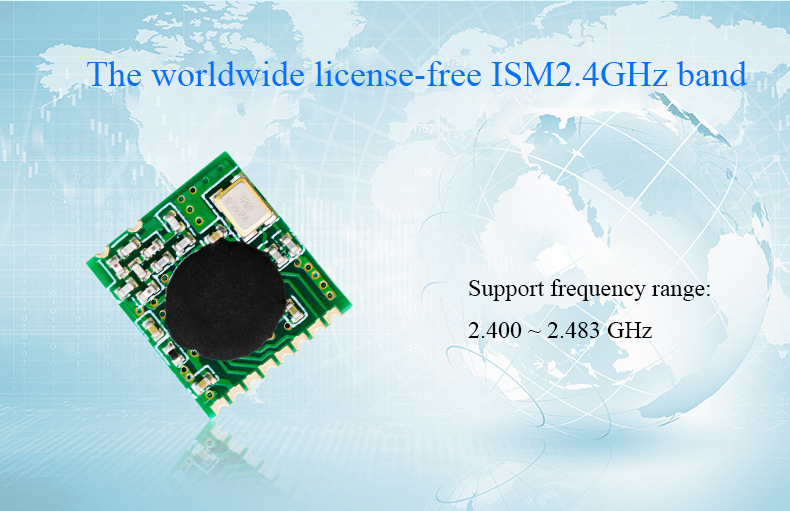

Frequency band :2.400-2.483GHz
Modulation mode: Support FSK, GFSK, MSK, ASK and OOK

Physical drawing
Product model	CC2500MTR2.4(First generation)	CC2500MTR2.4Z(2nd generation)	CC2500MTR2.4ZL(Third generation)	CC2500MTR2.4(sixth generation)
Chip scheme	CC2500 .	CC2500 .	CC2500 .	CC2500
Operating frequency band	2. 4GHz	2.4GHz	2400~ 2483.5MHz	2. 4GHz
Maximum output power	0dBm	0dBm	0dBm	0dBm
Receiving sensitivity	-104dBm@2.4Kbps	-104dBm@2.4Kbps	-104dBm@2.4Kbps	-104dBm@2.4Kbps
Transmission rate	1.2 -500Kbps	1.2 -500Kbps	1.2 -500Kbps	1.2 -500Kbps
Emission current	22mA	22mA	22mA	22mA
Receiving current	20mA	20mA	20mA	20mA
Reference distance	>50m	>50m	>50m	>50m

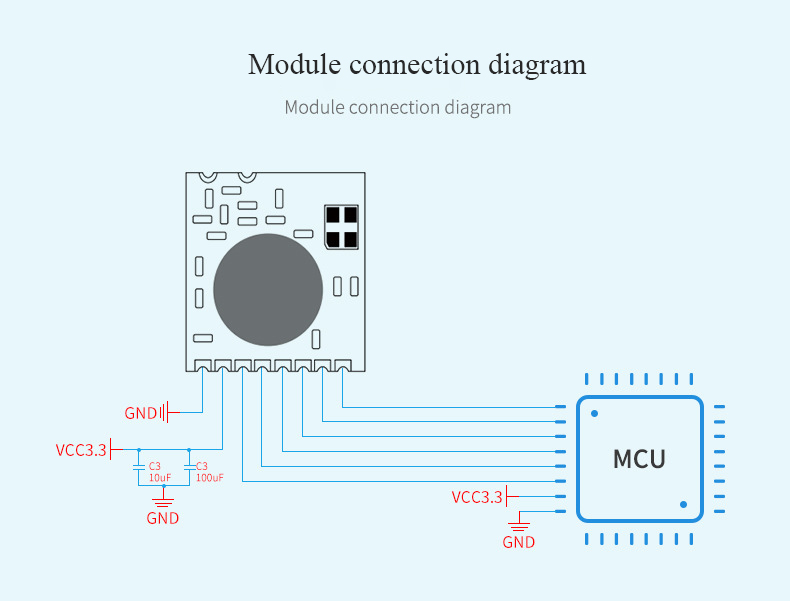

Communication interface	SPI	SPI	SPI	SPI

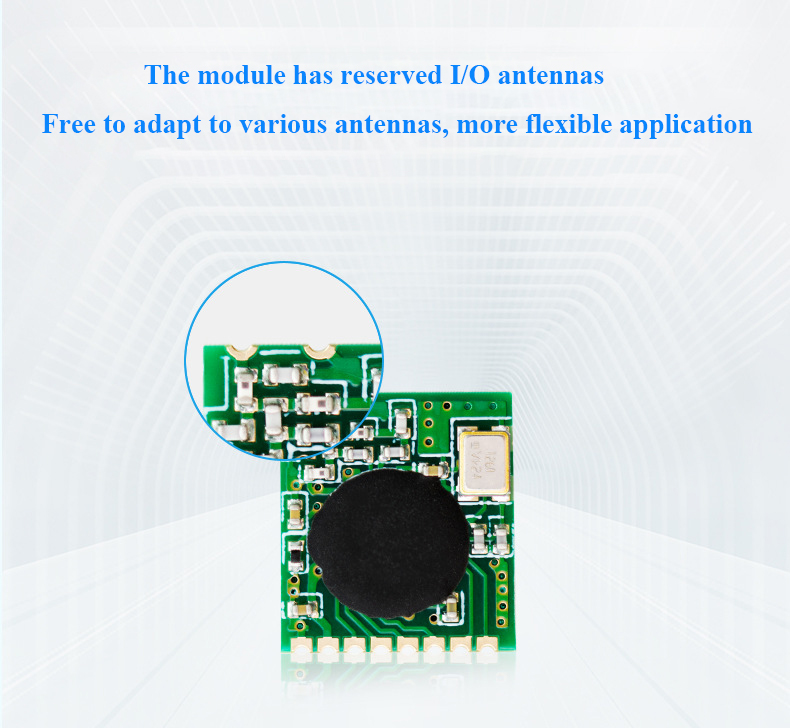

Antenna interface	Onboard antenna	Onboard antenna	Onboard antenna	Onboard antenna
Encapsulation mode	Patch	Patch	Patch	Patch

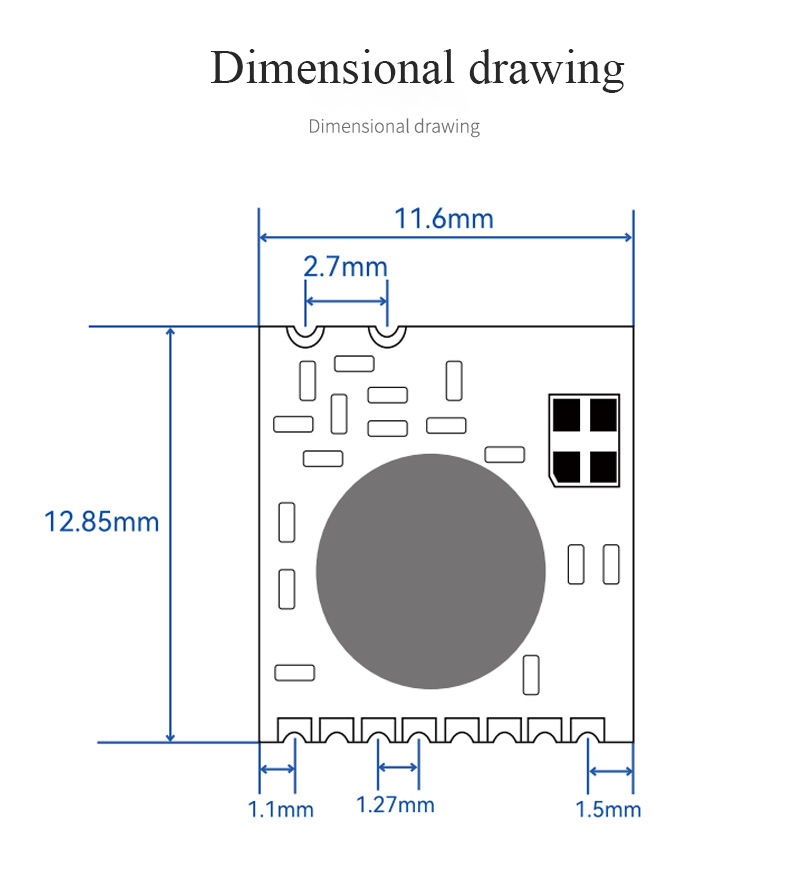

Module size	18.5* 12mm	17.3*12.2mm	11.6* 15.2mm	11.6*12.85mm
