CC2500+CC2592PA+LNA high-power 2.4G wireless module UAV remote control flight control ship model module

Short Description:

Communication interface :SPI

Sensitivity :-112dBm

Application field: UAV remote control application

Operating voltage :3.3V

Dimensions :28*21.6mm

Product Series :CC2500PATR2.4SN


Product Detail

Product Tags

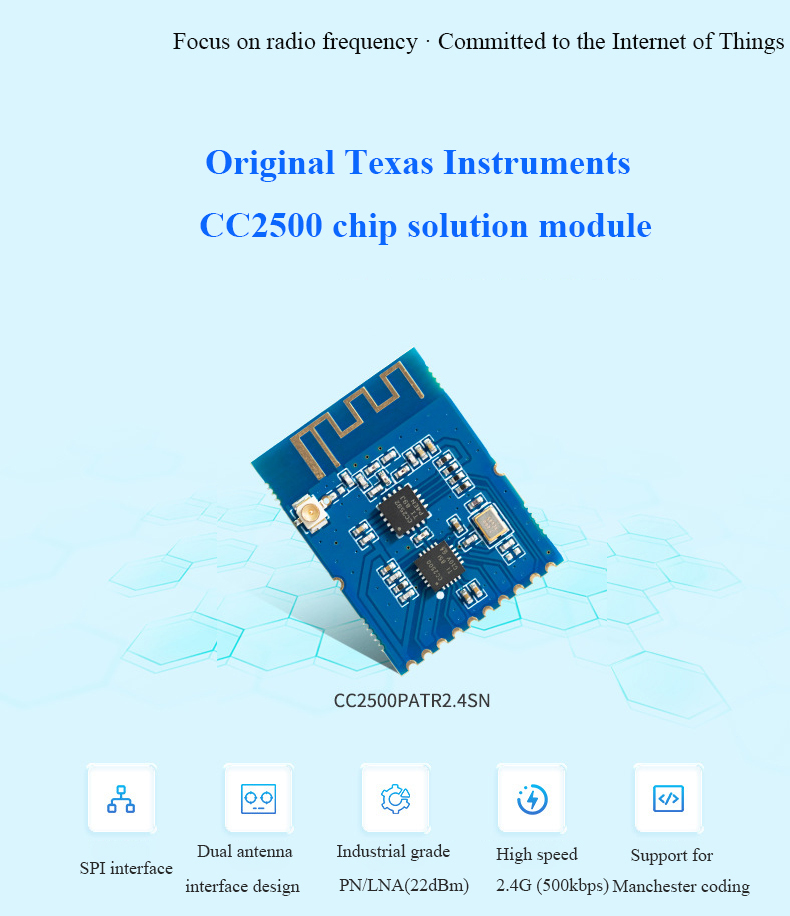

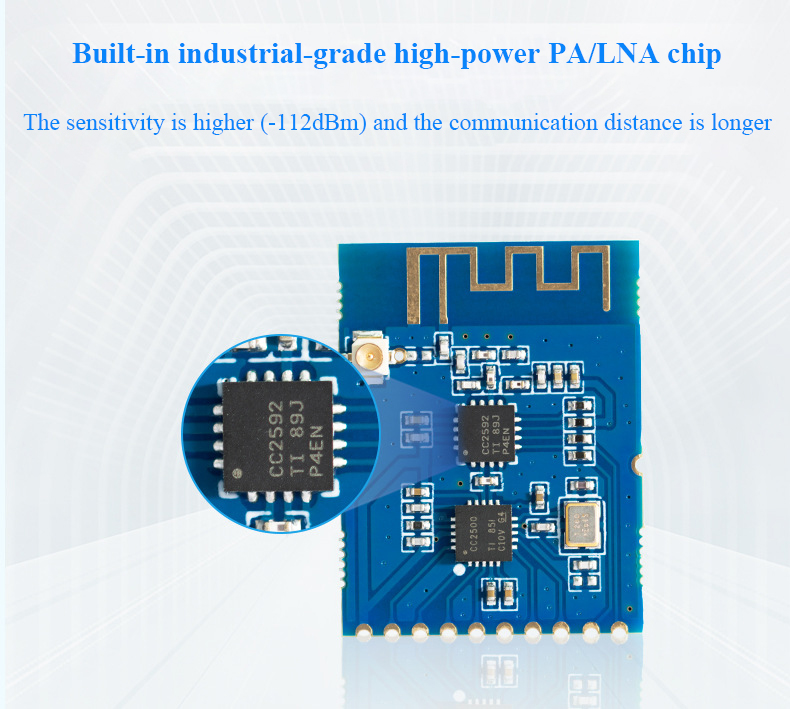

Focus on radio frequency ● Committed to the Internet of Things
CC2500PA+LNA module
2.4G high power

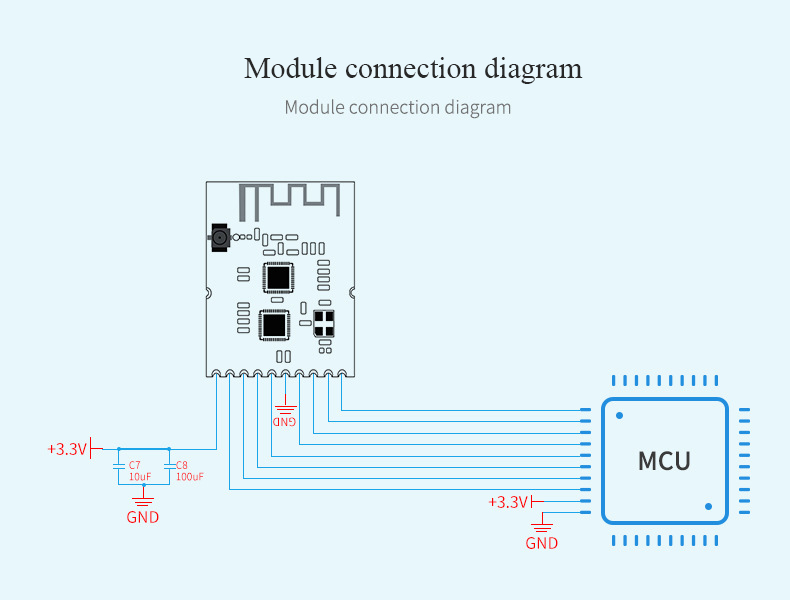

SPI interface
20dBm

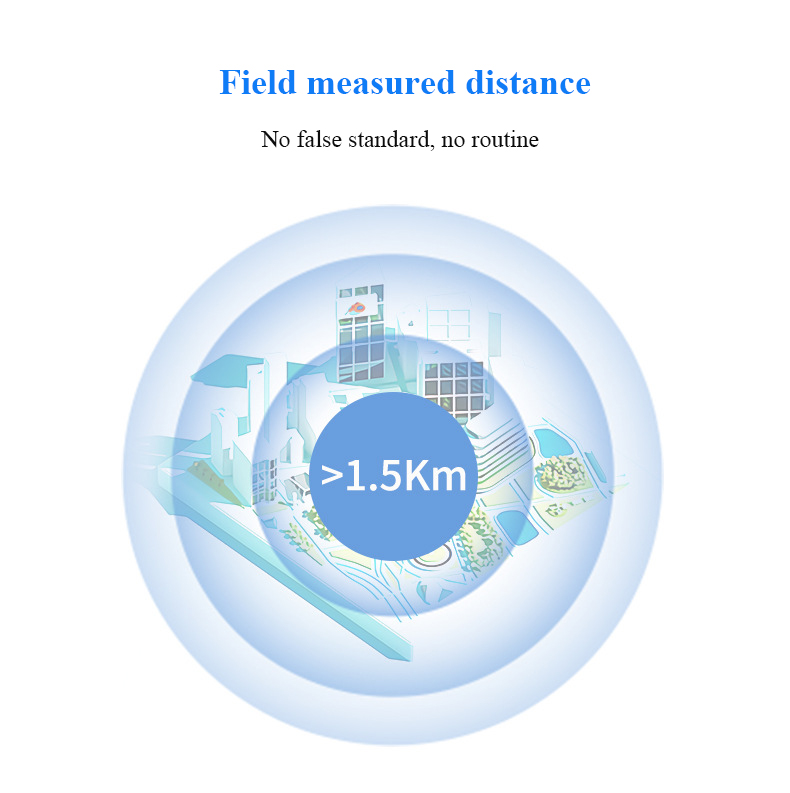

Long distance 1500m
Flight control/ship model module
28 mm * 21.6 mm

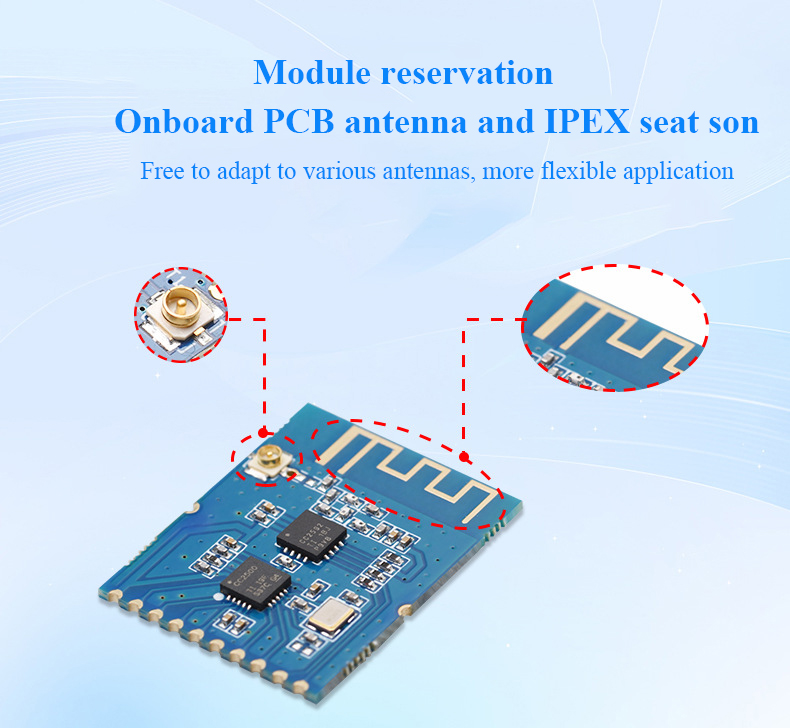

Built-in antenna /IPEX antenna base

Parameters can be set freely
And support Manchester coding, more flexible use
Power :22dBm
Speed: 1.2-500kbps

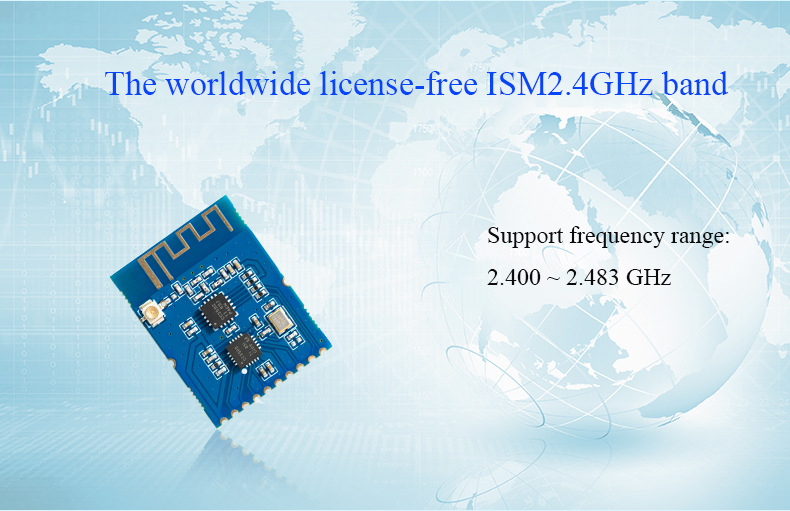

Frequency band: 2.400-2.483GHz
Modulation mode: Support FSK, GFSK, MSK, ASK and OOK

Product parameter list

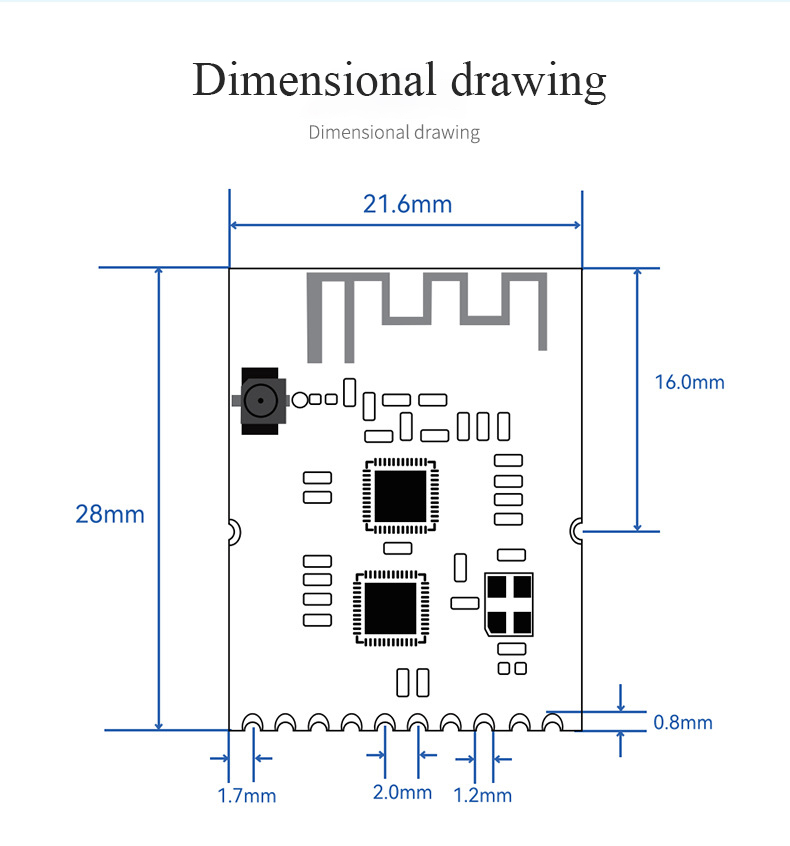

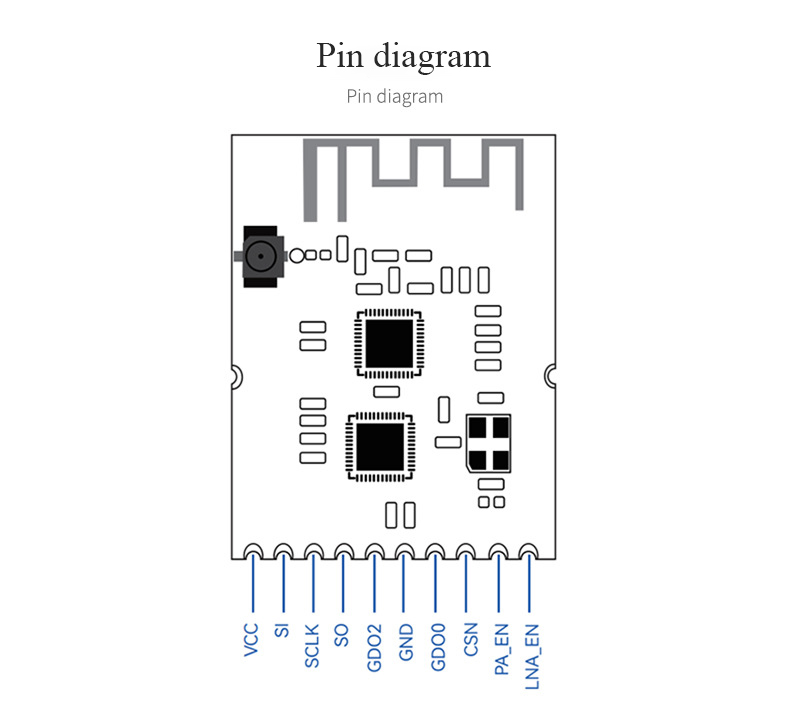

Physical drawing

 parameter (1)

 parameter (2)

 parameter (3)

 parameter (4)

Product model

CC2500MPATR2.4(Fifth generation)

CC2500MPATR2.4SK

CC2500MPATR2.4SN

CC2500MPATR2.4SR

Chip scheme

CC2500

CC2500

CC2500

CC2500

Operating frequency band

2.4GHz

2.4GHz

2.4GHz

2.4GHz

Maximum output power

20dBm

22dBm

20dBm

22dBm

Receiving sensitivity

-112dBm@2.4Kbps

-112dBm@2.4Kbps

-112dBm@2.4Kbps

-112dBm

Transmission rate

1.2-500Kbps

1.2-500Kbps

1.2-500Kbps

1.2-500Kbps

Emission current

<300mA

200mA

150mA

200mA

Receiving current

<25mA

25mA

25mA

25mA

Reference distance

>1.5Km

>2Km

>1.5Km

>1.5Km

Communication interface

SPI

SPI

SPI

SPI

Antenna interface

External antenna /IPEX antenna base

Dual antenna interface /IPEX antenna base

Onboard antenna /IPEX antenna base

IPEX External/dual antenna

Encapsulation mode

patch

patch

patch

patch

Module size

31.6* 16.5mm

25.9*16.6mm

28* 21.6mm

20*14mm

5 6 7 8 9 10 11 12 13
