CC2500PA+LNA bare chip Bond 2.4G wireless transceiver remote control module UAV flight control ship model module

Short Description:

CC2500PA+LNA module 2.4G Wireless module

Focus on radio frequency · Committed to the Internet of Things

2400-2483. 5MHz

01.2-500Kbps

High cost performance

High speed, long distance

Support FSK,GFSK,MSK,OOK modulation mode

Provide information and technical support

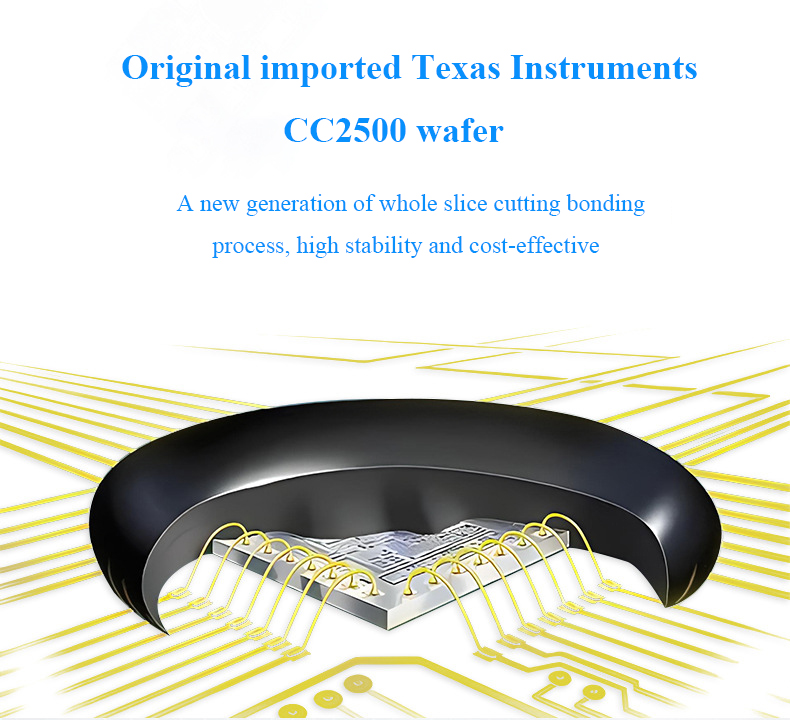

Original chip

Send email to us

Product Detail

Product Tags

Parameters can be set freely
And support Manchester coding, more flexible use
Power :20dBm
Speed :1.2-500kbps

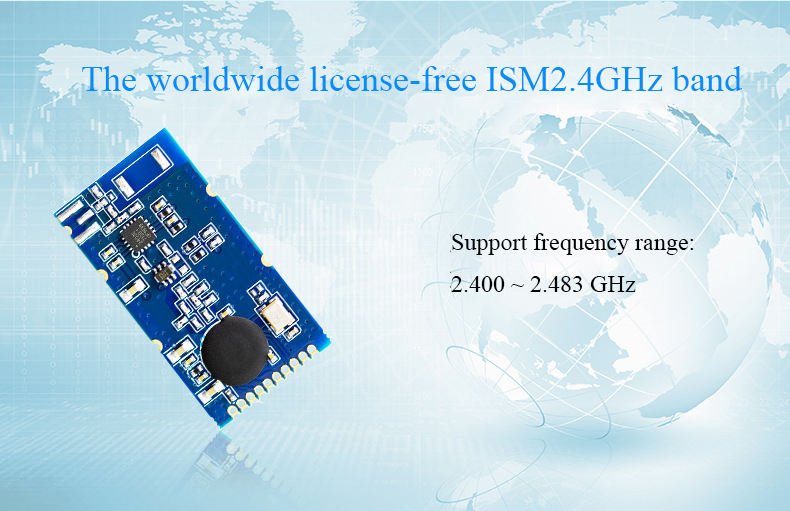

Frequency band: 2.400-2.483GHz
Modulation mode: Support FSK, GFSK, MSK, ASK and OOK

Product parameter list

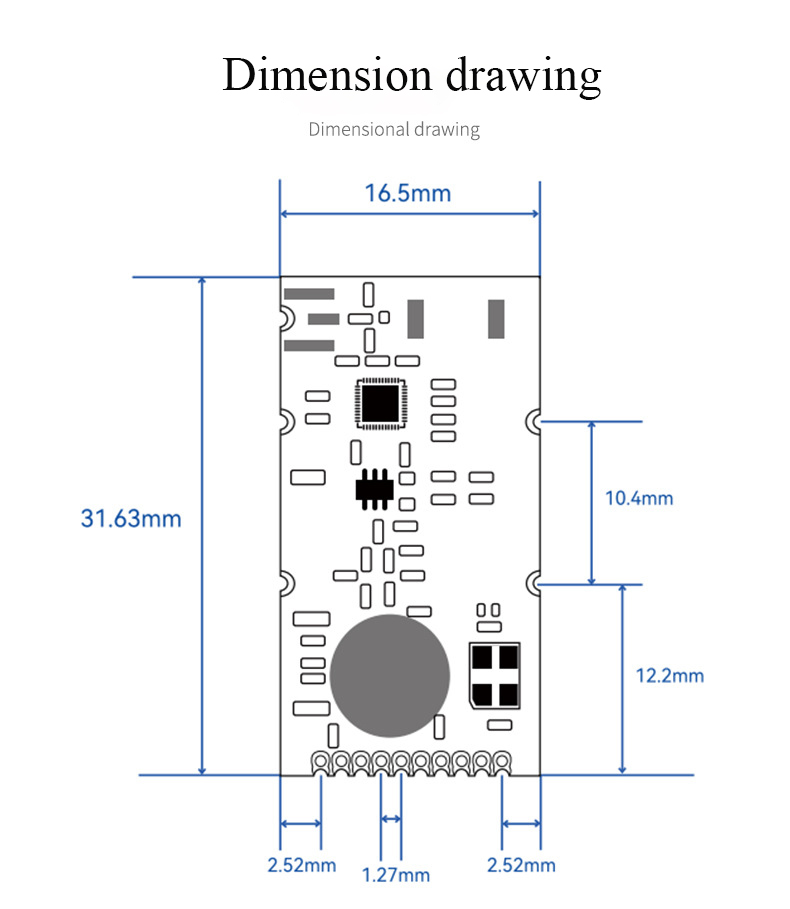

Physical drawing

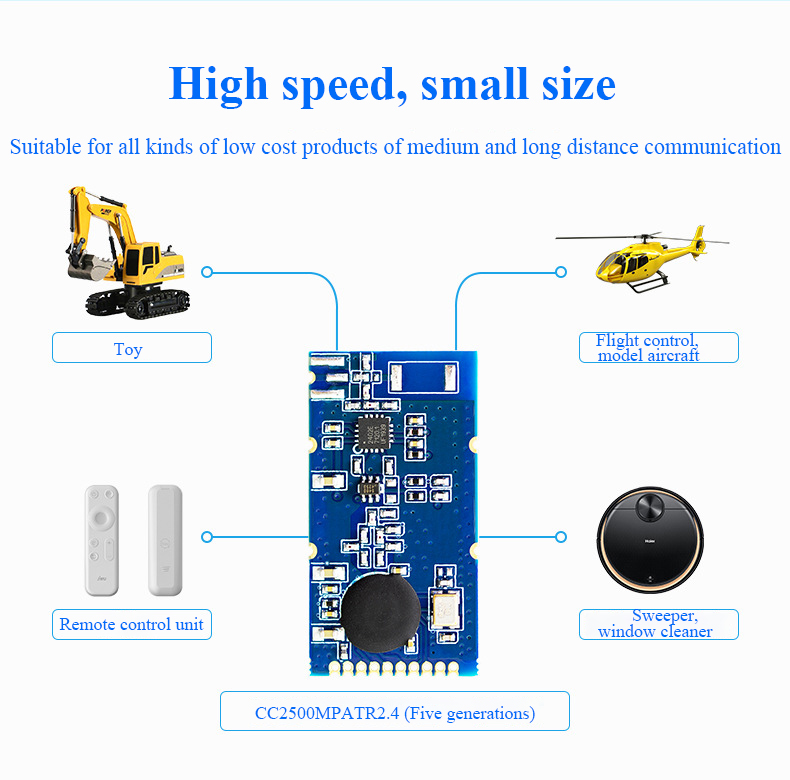

Product model	CC2500MPATR2.4(Fifth generation)	CC2500MPATR2.4SK	CC2500MPATR2.4SN	CC2500MPATR2.4SR
Chip scheme	CC2500	CC2500	CC2500	CC2500
Operating frequency band	2.4GHz	2.4GHz	2.4GHz	2.4GHz
Maximum output power	20dBm	22dBm	20dBm	22dBm

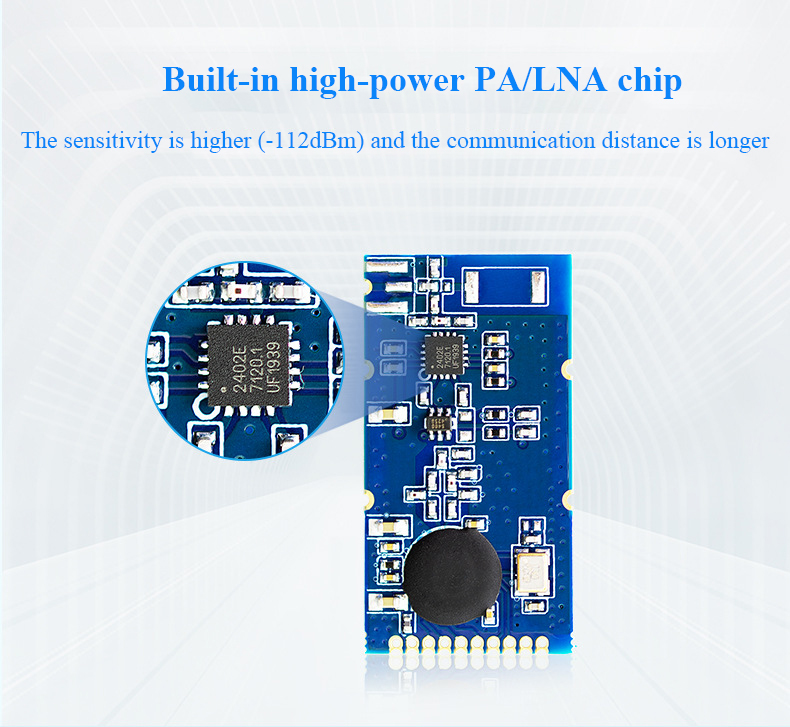

Receiving sensitivity	-112dBm@2.4Kbps	-112dBm@2.4Kbps	-112dBm@2.4Kbps	-112dBm
Transmission rate	1.2-500Kbps	1.2-500Kbps	1.2-500Kbps	1.2-500Kbps
Emission current	<300mA	200mA	150mA	200mA
Receiving current	<25mA	25mA	25mA	25mA
Reference distance	>1.5Km	>2Km	>1.5Km	>1.5Km

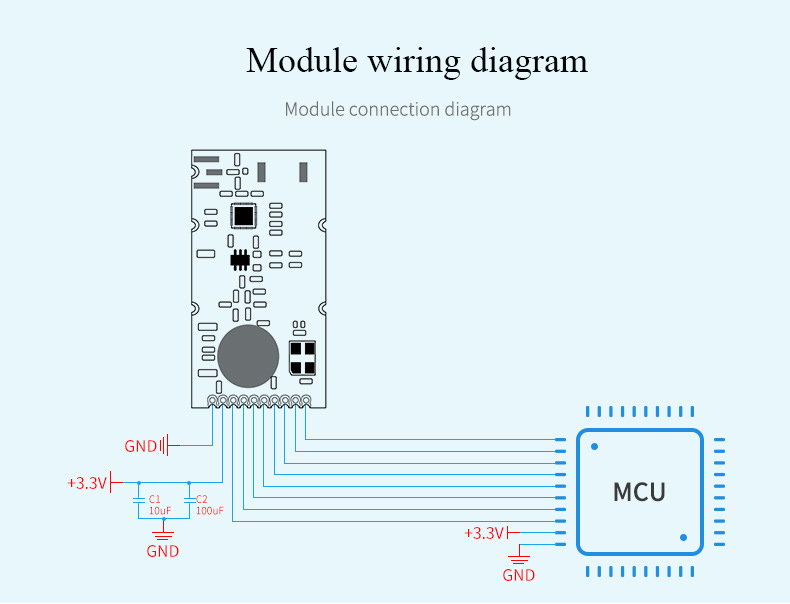

Communication interface	SPI	SPI	SPI	SPI

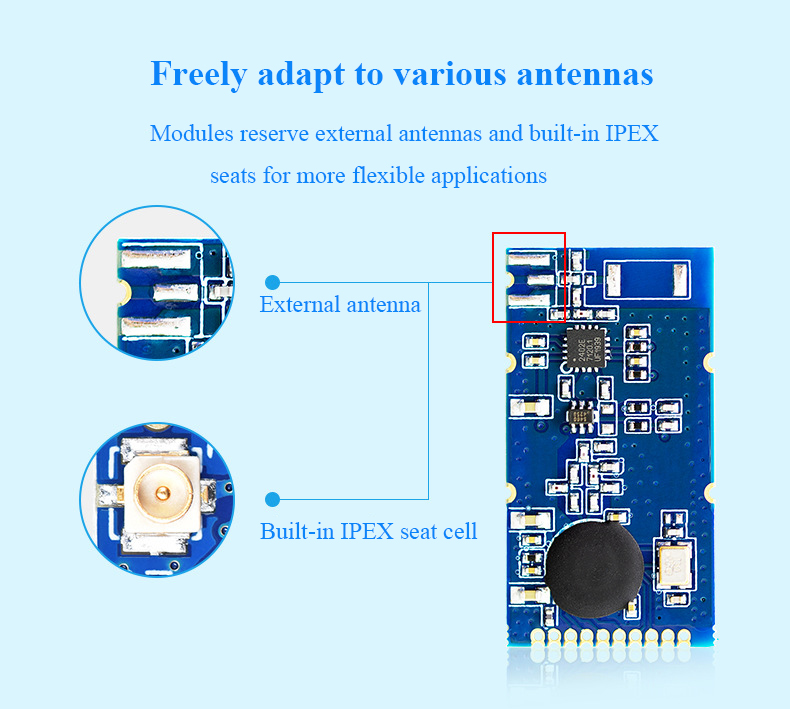

Antenna interface	External antenna /IPEX antenna base	Dual antenna interface /IPEX antenna base	Onboard antenna /IPEX antenna base	IPEX External/dual antenna
Encapsulation mode	patch	patch	patch	patch
Module size	31.6* 16.5mm	25.9*16.6mm	28* 21.6mm	20*14mm
