CC2500PA+LNA high-power dual antenna receiving and transmitting 2.4G module UAV flight control remote control application

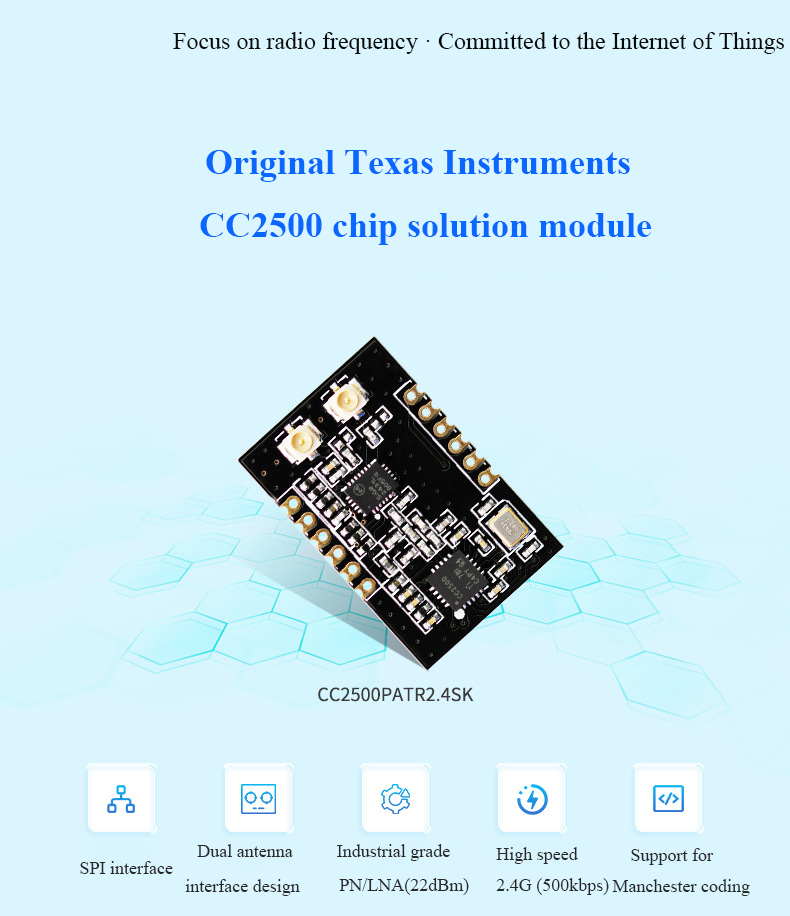

CC2500PA+LNA module
2.4G high power
SPI interface

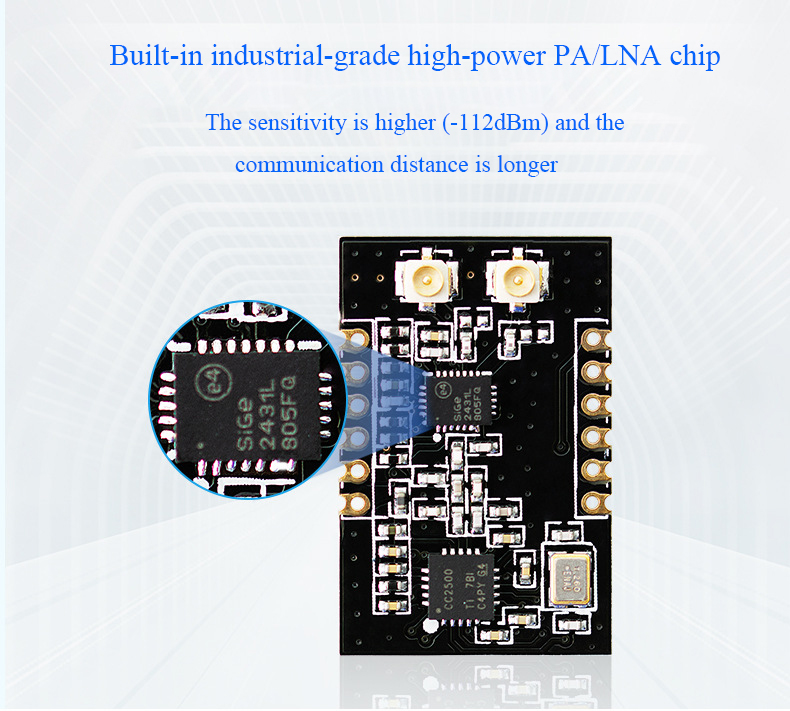

22dBm

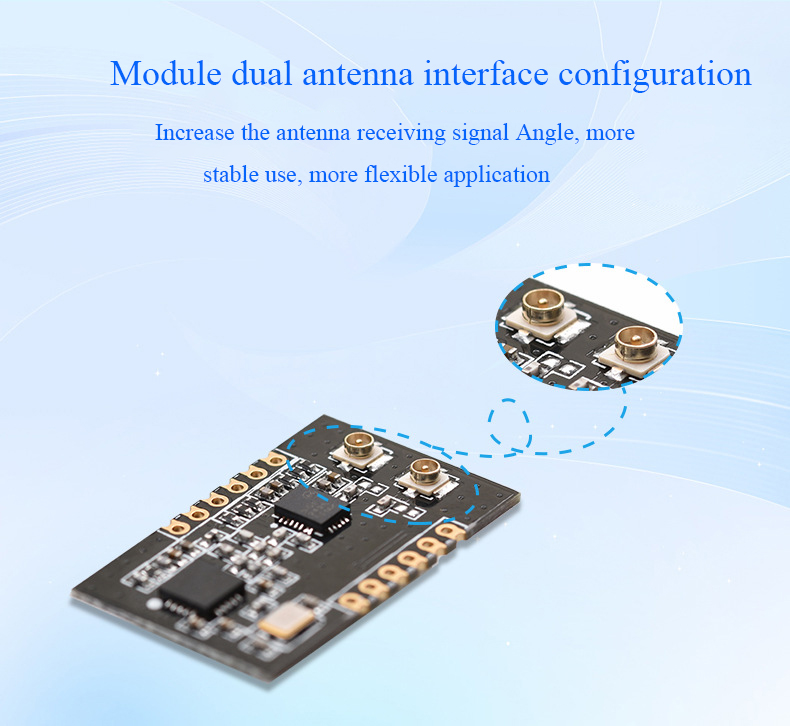

Dual antenna module

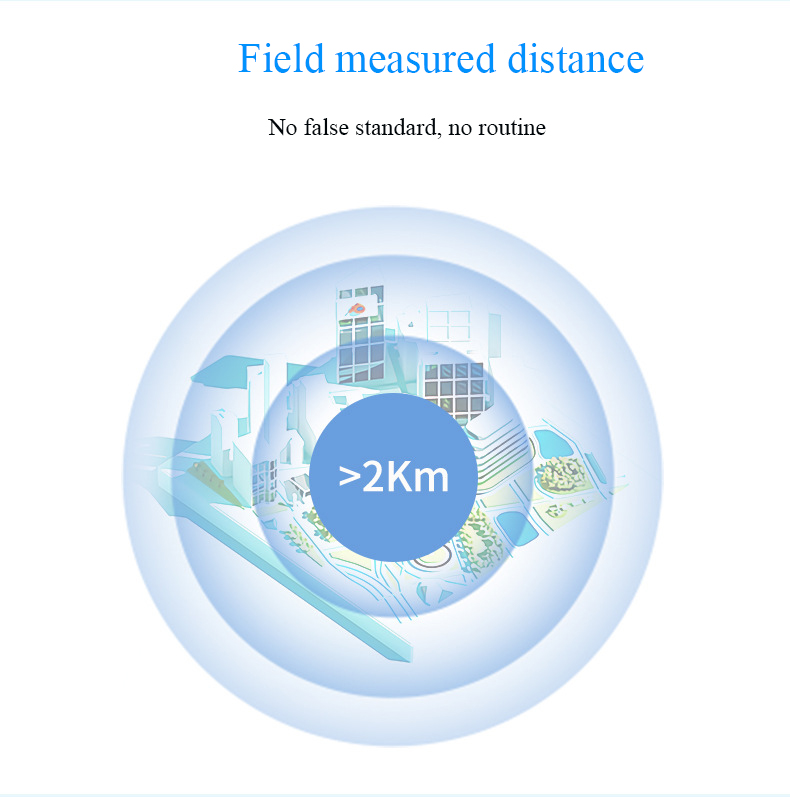

Long distance 2000m
Model ship/model ship module

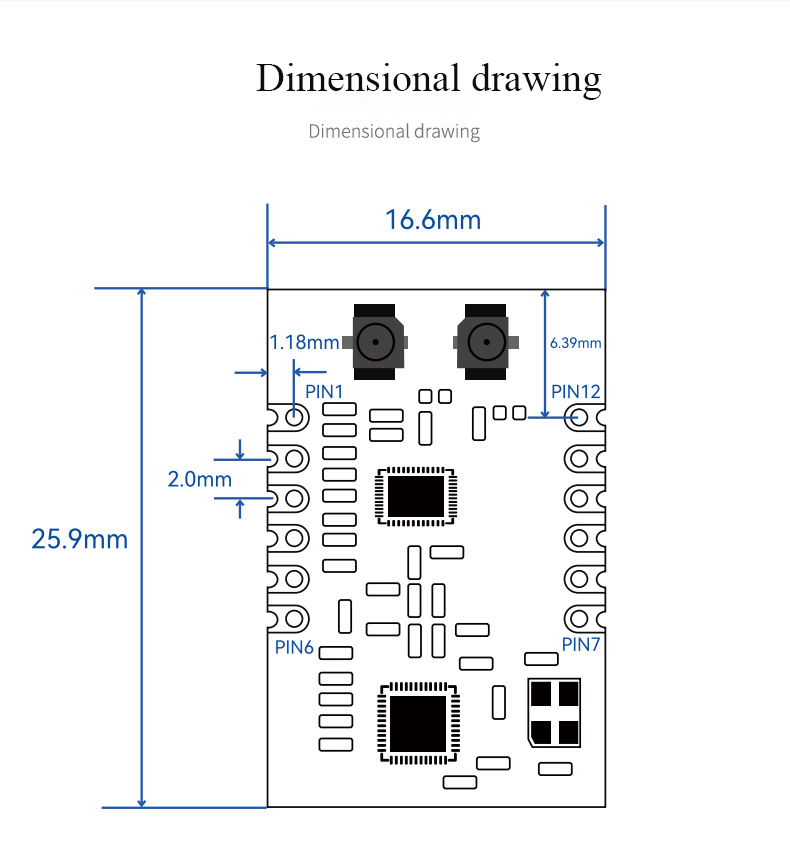

25.9 x 1 6.6mm
Focus on radio frequency. Committed to the Internet of Things
Parameters can be set freely
And support Manchester coding, more flexible use
Power :22dBm
Speed: 1.2-500kbps

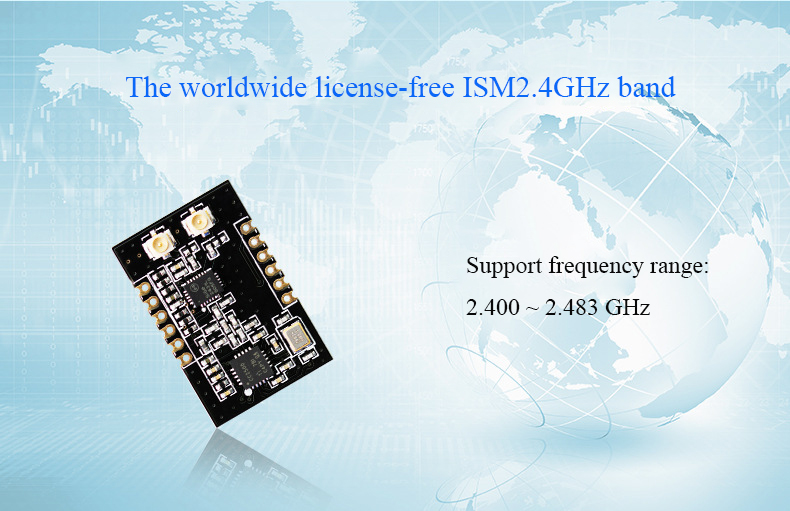

Frequency band: 2.400-2.483GHz
Modulation mode: Support FSK, GFSK, MSK, ASK and OOK
Product parameter list
|
Physical drawing |
|
|
|
|
|
Product model |
CC2500MPATR2.4(Fifth generation) |
CC2500MPATR2.4SK |
CC2500MPATR2.4SN |
CC2500MPATR2.4SR |
|
Chip scheme |
CC2500 |
CC2500 |
CC2500 |
CC2500 |
|
Operating frequency band |
2.4GHz |
2.4GHz |
2.4GHz |
2.4GHz |
|
Maximum output power |
20dBm |
22dBm |
20dBm |
22dBm |
|
Receiving sensitivity |
-112dBm@2.4Kbps |
-112dBm@2.4Kbps |
-112dBm@2.4Kbps |
-112dBm |
|
Transmission rate |
1.2-500Kbps |
1.2-500Kbps |
1.2-500Kbps |
1.2-500Kbps |
|
Emission current |
<300mA |
200mA |
150mA |
200mA |
|
Receiving current |
<25mA |
25mA |
25mA |
25mA |
|
Reference distance |
>1.5Km |
>2Km |
>1.5Km |
>1.5Km |
|
Communication interface |
SPI |
SPI |
SPI |
SPI |
|
Antenna interface |
External antenna /IPEX antenna base |
Dual antenna interface /IPEX antenna base |
Onboard antenna /IPEX antenna base |
IPEX External/dual antenna |
|
Encapsulation mode |
patch |
patch |
patch |
patch |
|
Module size |
31.6* 16.5mm |
25.9*16.6mm |
28* 21.6mm |
20*14mm |
-
