Custom LED PCBA Manufacturer LED PCBA Printed circuit board components for LED modules or lighting fixtures

Short Description:

Flame Retardant Properties: V0, V1, V2

Insulation Materials: Epoxy Resin, Metal Composite Materials, Organic Resin

Material: Complex, Synthetic Fiber

Mechanical Rigid: Fexible

Processing Technology: Electrolytic Foil


  • Model Number: Best-DS690905
  • Brand Name: OEM
  • Origin: China
  • Small Orders: Accepted
  • Product Detail

    Product Tags

    Product Specification:

    FOB Port

    Shenzhen

    Weight per Unit

    0.12 Kilograms

    HTS Code

    8534.00.10 00

    Export Carton Dimensions L/W/H

    54 x 39 x 29 Centimeters

    Lead Time

    7–15 days

    Dimensions per Unit

    8.0 x 6.0 x 2.0 Centimeters

    Units per Export Carton

    120.0

    Export Carton Weight

    14.5 Kilograms

    Key Specifications/Special Features:

    • PCBA contract manufacturing service;
    • Experienced in one station assembly for boards used in applications of automotive control, industrial control, telecommunication, commercial usage and more;
    • PCB fabrication capacity: 2 to 32 layers;
    • FR4 fiber glass epoxy Tg120-Tg200;
    • Metal based boards, Rogers, Nelco RF PCB material;
    • 1 to 6oz cooper thickness;
    • 0.5 to 3mm finished board thickness;
    • 0.15mm (diameter) minimum hole size;
    • 0.12mm minimum trace width;
    • 0.13mm minimum trace distance;
    • SMT placement for SOP, QFP, CSP, and BGA packages, 0201 components;
    • In-circuit testing and functional testing;
    • High speed SMT machines in 4 lines (Y amaha, YG200, YV100Xg);
    • Solder paste screen printer;
    • Solder paste thickness analyzer;
    4pcba (1)
    4pcba (3)
    4pcba (2)

    Main Export Markets

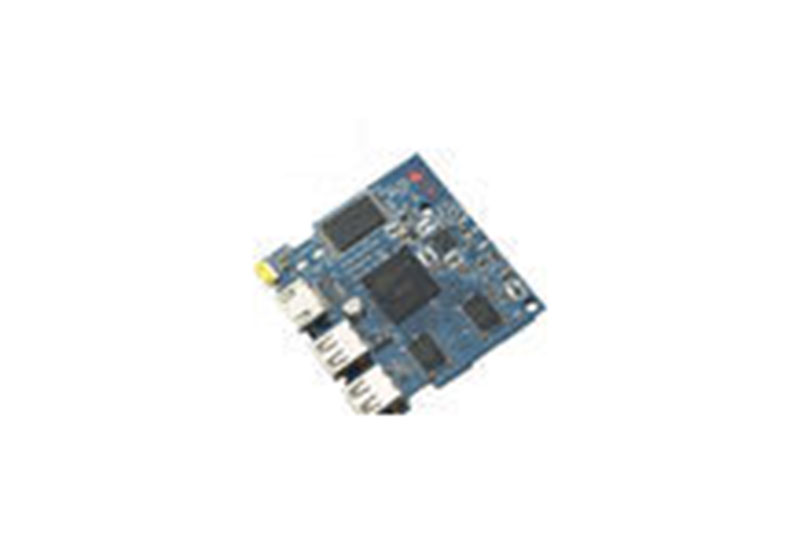

    4pcba 1(1)
    • - Asia
    • - Australasia
    • - Central/South America
    • - Eastern Europe
    • - Mid East/Africa
    • - North America
    • - Western Europe

    FAQs

    Q1. Which type of PCBs do you expert in?

    We are specialized in producing Singe-side PCB,Double-side PCB, Multilayer PCB,Aluminium PCB,Spray Tin PCB,Immersed Gold PCB, etc.

    Q2. What is your Lead time?

    Lead time is usually punctual here, usually 5-10 days for PCB sample, 10-15 days for mass production.  For some special situation, we can also advise customer in advance to avoid any inexpectation or loss at customer side.

    Q3. What is your testing policy and how you controle the quality?

    For sample, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by fixture, this will be more faster. Due to there’s many steps to PCB production, we usually do inspection after every step.

    Q4. PCB shipment?

    This is depend on customer, sometimes we ship through our forwarder, who is also the agency of DHL, TNT, UPS, Fedex, and so on. Our forwarder can provide too much better freight cost than we get directly from those express enterprise.

    Q5. I only have the pcb sample, not pcb file, can you produce it for me?

    Yes, we can copy file based on your sample, this file names gerber, and production then is accorded to gerber file.

    Q6. What kind of PCB file format can you accept for production? What CAM software do you use?

    We accept Gerber file for production. CAM350, GENESIS, UCAM, GC-CAM, V-2000.

    Q7. Will you allow me to put several part number together into one panel?

    Yes, this is usually happen in we factory, this way can help customers reduce some cost and to a certain degree, it can help reduce some assembly cost.
