Elevator access control system Elevator access control

Short Description:


Product Detail

Product Tags

Product Specification:

Working mode

elevator access control, locker access control management

Identification type

ID card, IC card, fingerprint, magnetic card, password

Identification method

single card, card plus password, password, double card identification, management card + user card to open the door

Working temperature

-25℃-75℃

Working humidity

10-90%

Working voltage

DC10.8-14 V -> standard DC 12V

Working current

500mA -> without card reader

Drive current

<7A per group -> Relay dry contact (NO, NC software adjustable)

Punch time slot

support -> 64 time slots

Validity period

support -> 1 day-100 years can be set arbitrarily

Offline operation

support

Control expansion

3 groups connected in series to achieve 64 layers of control capacity

Card capacity

26000 groups

Data capacity

100,000 pieces

Network mode

RS485 and TCP/IP -> TCP/IP is optional

Networked machines

127 sets

Communication distance

1200 meters -> RS-485 networking

Transmission rate

19200 baud rate -> 19200 8,1,n

Data retention

10 years

Transmission mode

real-time, non-real-time

Mainboard size

length 230mm, width 145mm, height 22mm

Product Description

Access control system

.5816 series smart card elevator/storage cabinet access control controller, also known as smart card elevator access control management system.

.5816 is a system product used for layered control of elevators and authority control of people getting on and off elevators.

.5816 series smart card elevator access control controller can be used to meet the needs of building property management companies or management personnel for more effective and more secure management of various personnel in and out of the elevator. By adding this system, all cardholders who enter the floor can control the authority of entering and exiting each floor.

.5816 According to different personnel identities, different floor permissions are provided. You can specify that someone can only go to a certain floor, some floors or all floors, and manage each floor through permissions. Those people can reach a certain floor and those people cannot. A certain floor, and the MC5816 can perform authorization management according to the schedule. If you are not authorized by the elevator access control management system, you cannot enter the floors of the management area, and control the time period of important floors.

.5816 series elevator access control management system supports offline operation, and can independently store 26,000 sets of personnel data and 100,000 records, so that all personnel entry and exit records on the floor can be traced.

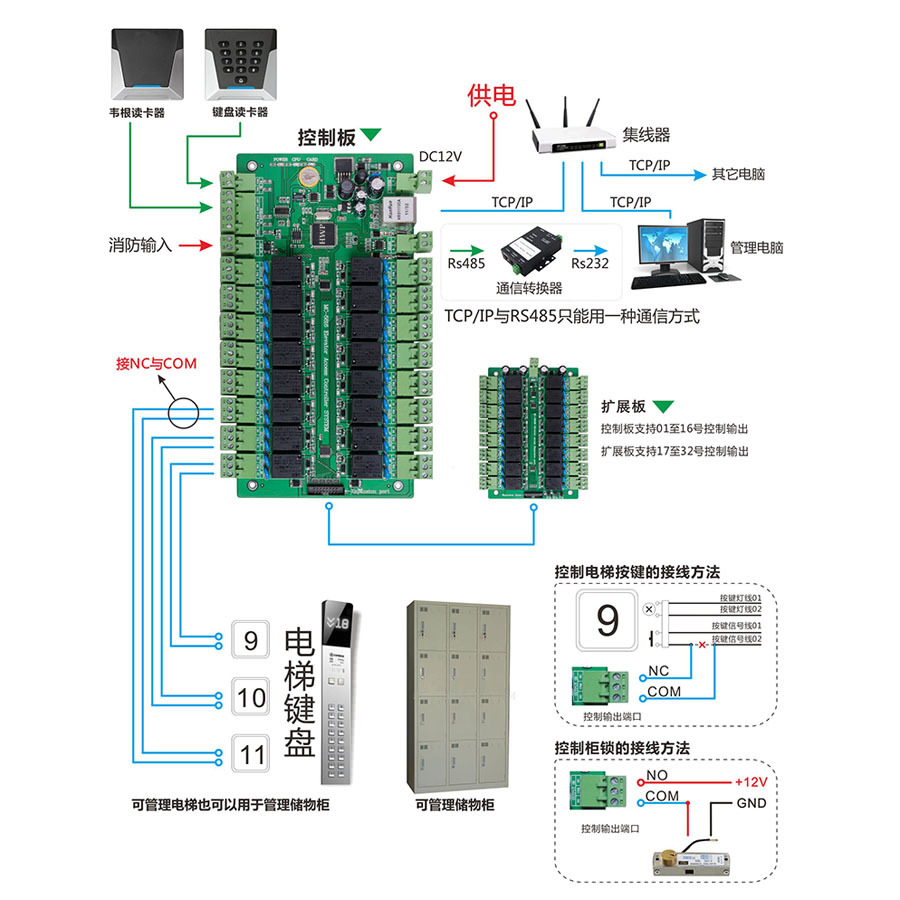

.5816 stand-alone supports 16 floor management, and can also be extended through expansion boards. It supports 3 pieces of 16-way expansion boards, and finally can manage 64 floors. It supports RS485 networking and TCP/IP dual communication methods. Through RS485 stand-alone communication distance of 1200M, one bus supports 127 elevator access controllers, each MC-5816 provides two standard card reader interfaces, supports Wiegand 26Bit Wiegand 32Bit Wiegand40Bit card reader or fingerprint head as the identification device, all elevator access control Both input and output are equipped with voltage dynamic protection, all relay outputs are equipped with instantaneous overvoltage protection, and support fire alarm input linkage.
