F3 V4 PRO flight control integrated adjustable map transmission, OSD+BEC+PDB racing flight control

Material CB circuit board

Function: Flash

Origin: Shenzhen

Product category: Model aircraft accessories

Static model or not: Yes

Control mode: remote control

Electric or not: Yes

Power supply: Battery

Multifunctional or not: Yes

Can DIY: Yes

Packing method: electrostatic bag

Processing customization: Yes

Processing method: customized by sample

F3OSDTX Flight control parameters

Size: 36*36mm, screw hole spacing 30.5 * 30.5mm, screw M3

Weight: 11g

Firmware: F3 flight control supports CF/BF firmware (default is BF 3.17)

Features:

● Integrated OSD.

● Integrated 40CH 500mW adjustable image transmission (25mW-200mW-500mW), image transmission with shutdown function, during the adjustment, you can turn off the image transmission to avoid unnecessary battery consumption.

● Digital tube display channel and power information, intuitive and convenient.

It can support simultaneous audio input, so that you can enjoy the sound of flight stroke (only the microphone of the camera belt supports).

● BEC with 5V/3A integration.

● Digital tube display channel and power information, intuitive and convenient.

● Support tower type (single line connection 4 in 1 electrical regulation)

● Support 2-6S power input,

● Support buzzer alarm,

● Self-contained battery voltage detection.

● Support SBUS/DSM2/DSMX receiver, support OSD remote control parameters

Hardware Specifications:

●MPU: MPU6000

● MCU: STM32F303CCT6

● Picture transmission: 500mW adjustable

●BEC: 5V/3A output

● External LED

● External buzzer

Integrated picture transmission function description

Features:

5.8G broadband FM audio and video synchronous transmission transmission

● Input voltage :7-24V

● Working current: 310mA@12V /400mw

● Transmission power: 400mw/ 200mw/25mw (optional)

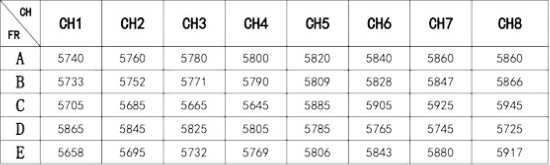

● Frequency range: 5.8G 40CH 5645-5945MHZ

● Full PAL/NTSC.
