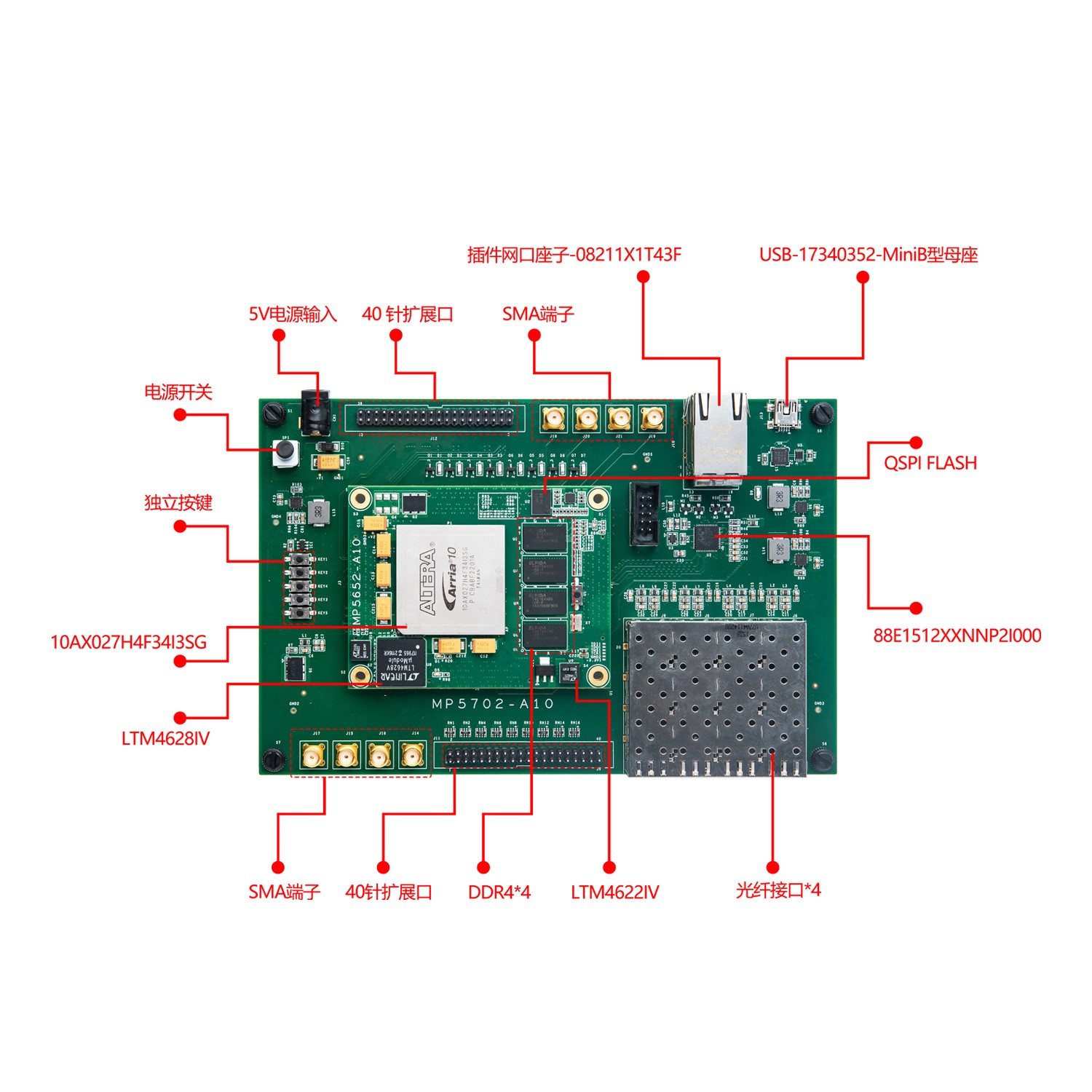

FPGA Intel Arria-10 GX series MP5652-A10 Featured Image
  • FPGA Intel Arria-10 GX series MP5652-A10
  • FPGA Intel Arria-10 GX series MP5652-A10
  • FPGA Intel Arria-10 GX series MP5652-A10

FPGA Intel Arria-10 GX series MP5652-A10

Short Description:

DDR4 SDRAM: 16GBDDR4 Each 16bit composition of the data bit width of the 64bit bit

QSPI Flash: A piece of 1GBQSPIFLASH, which is used to store the configuration file of the FPGA chip

FPGA Bank: adjustable 12V, 18V, 2.5V, 3.0V level, if you need to change the level, you only need to replace


Product Detail

Product Tags

Overview

Medical instrument control system
  • Interface level: The corresponding position can be adjusted by magnetic beads.
  • Core board power supply: 5-12V power supply generates two power supply through the T1 chip LTM4628 to meet the FPGA current requirements
  • Core board startup method: JTAG, QSPIFLASH
  • Connector tube foot definition: 4 high -speed extensions, 120pin Panasonic AXK5A2137yg
  • The bottom plate SFP interface: 4 optical modules can achieve high -speed optical fiber communication, with a speed of up to 10GB/s
  • Fave Plate GXB clock: The bottom plate provides a 200MHz reference clock for the GXB transceiver
  • The bottom plate 40 -needle extension: reserved 2 2.54mm standard 40 -pin extension J11 and J12, which is used to connect the modules designed by the company or the module function circuit designed by the user themselves

Detailed Information

  • Core plate clock: multiple clock sources on board. This includes 100MHz system clock source 510kba100M000bag CMOS crystal 125MHz Transceiver Differential Clock Sittaid Sit9102 Crystal 300MHz DDR4's external differential clock source SIT9102 crystal.
  • JTAG debug port: MP5652 core board has a 6PIN patch JTAG download debugging interface.
  • Convenient for users to debug FPGA separately.
  • System reset: At the same time, the button also provides the system with the global reset signal MP5652 core board to support the power -on reset. The entire chip is reset.
  • LED: There are 4 red LED lights on the core board, one of which is DDR4 reference power indicator.
  • Button and switch: There are 4 keys on the bottom plate, which is connected to the corresponding pipe foot on the J2 connector.
  • Usually high level, pressing to low level
