Short Description:

Application: Smart meters

Model number: M02R04117

Plate: Ultrasonic GW1500

Plate thickness: 1.6+/-0.14mm

Size: 131mm*137mm

Minimum aperture: 0.4mm


Product Detail

Product Tags

Product Description

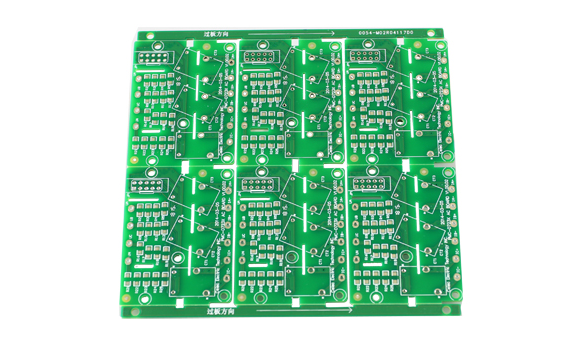

Industrial control security1
  • Application: Smart meters
  • Model number: M02R04117
  • Plate: Ultrasonic GW1500
  • Plate thickness: 1.6+/-0.14mm
  • Size: 131mm*137mm
  • Minimum aperture: 0.4mm
  • Minimum hole copper: 25um
  • Watch Copper thickness: 1.5OZ
  • Minimum line width: 0.254mm
  • Minimum line distance: 0.204mm
  • Finish: Lead-free tin spray
  • Terminal product: smart meter

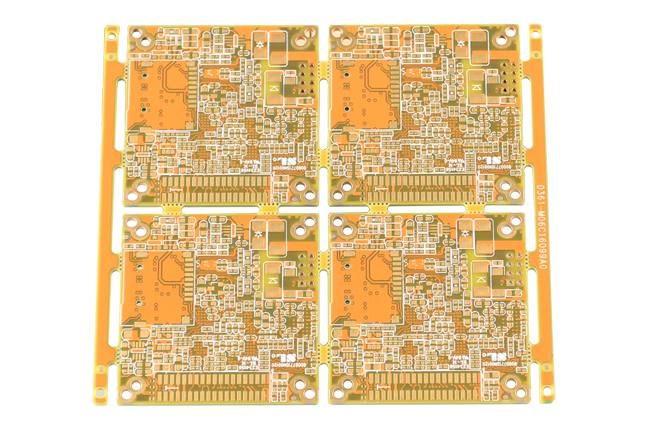

Industrial control security2
  • Application: monitoring equipment
  • Model: M06C16099
  • Plate: Taiwan EM-825
  • Plate thickness: 1.6±0.16mm
  • Size: 96mm*86mm
  • Minimum aperture: 0.2mm
  • Minimum hole copper: 20um
  • Watch copper thickness: 1OZ
  • Minimum line width: 0.085mm
  • Minimum line distance: 0.12mm
  • Finish: Sunk gold
  • Terminal product: security monitoring equipment

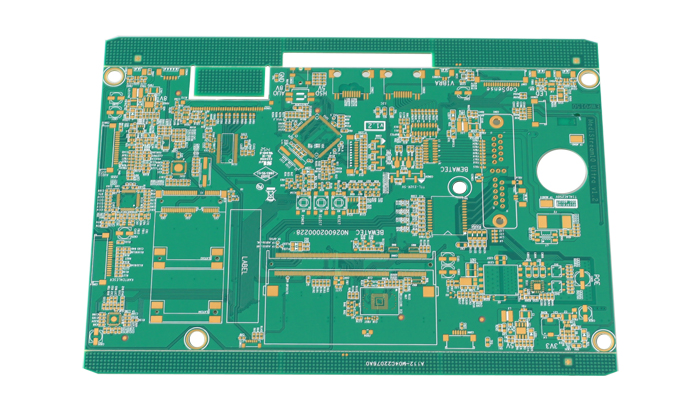

Industrial control security3
  • Application: Automatic production equipment
  • Model number: M04C22076
  • Sheet: Shengyi S1000H
  • Plate thickness: 1.6+/-0.16mm
  • Size: 219mm*157.3mm
  • Minimum aperture: 0.35mm
  • Minimum hole copper: 25um
  • Table copper thickness: 35um
  • Minimum line width: 0.15mm
  • Minimum line distance: 0.17mm
  • Finish: Sunk gold
  • End product: automatic production equipment
  • Special requirements: IPC tertiary standard
