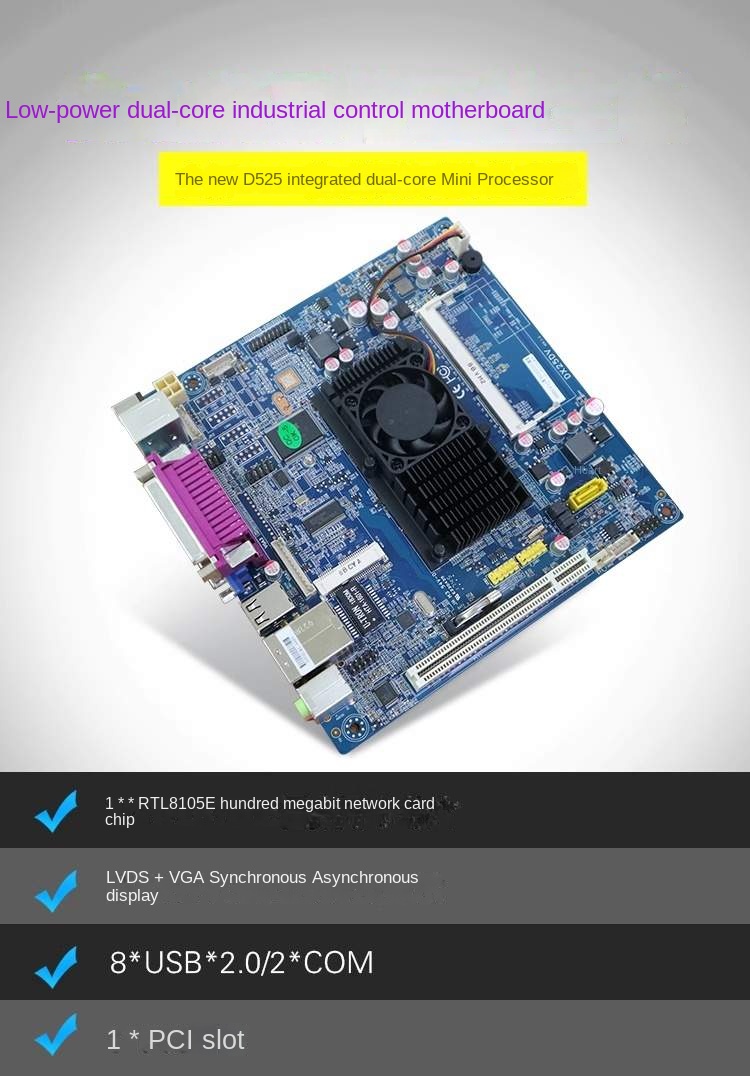

Industrial new Atom D525 dc12v powered motherboard Industrial motherboard ITX motherboard with PCI motherboard linux

Chipset: Intel NM10 high-speed chipset

Processor: Onboard Intel Atom D525 1.8G processor

Front-end bus frequency: Intel NM10 high-speed chipset

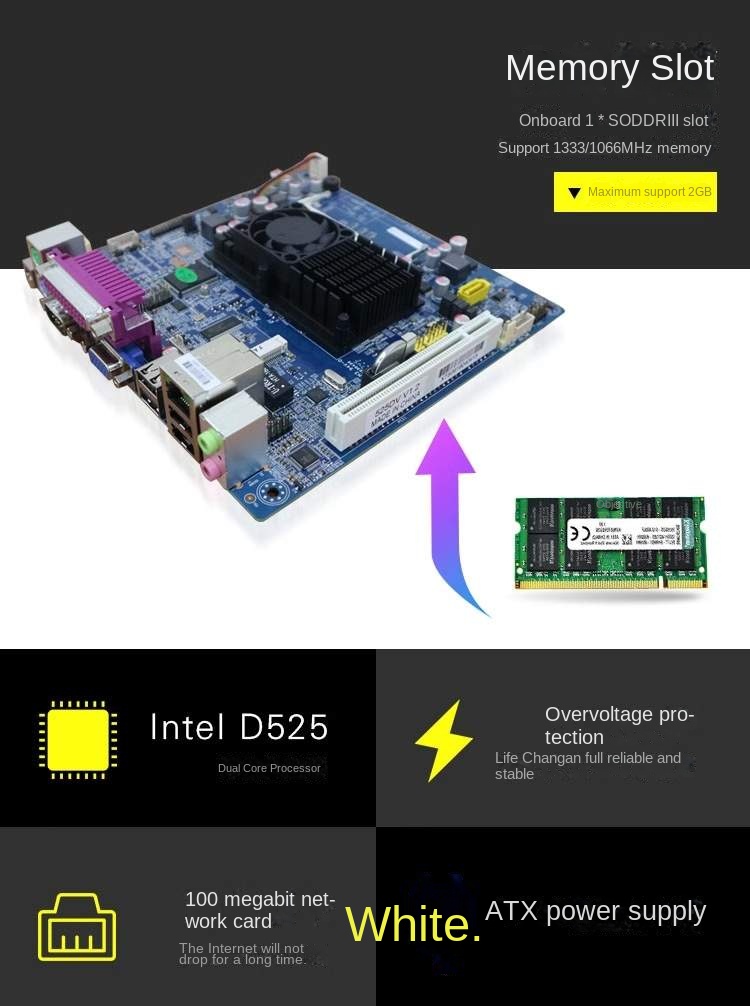

System memory: 1*SODDRIII slot

(Support 800/1066 memory, up to 4GB)

BIOS: AMI 8MB DPI Flash ROM

Audio function: On-board ALC662(6-channel hi-fi audio, MIC Line-out support)

Bus extension: 1 PCI

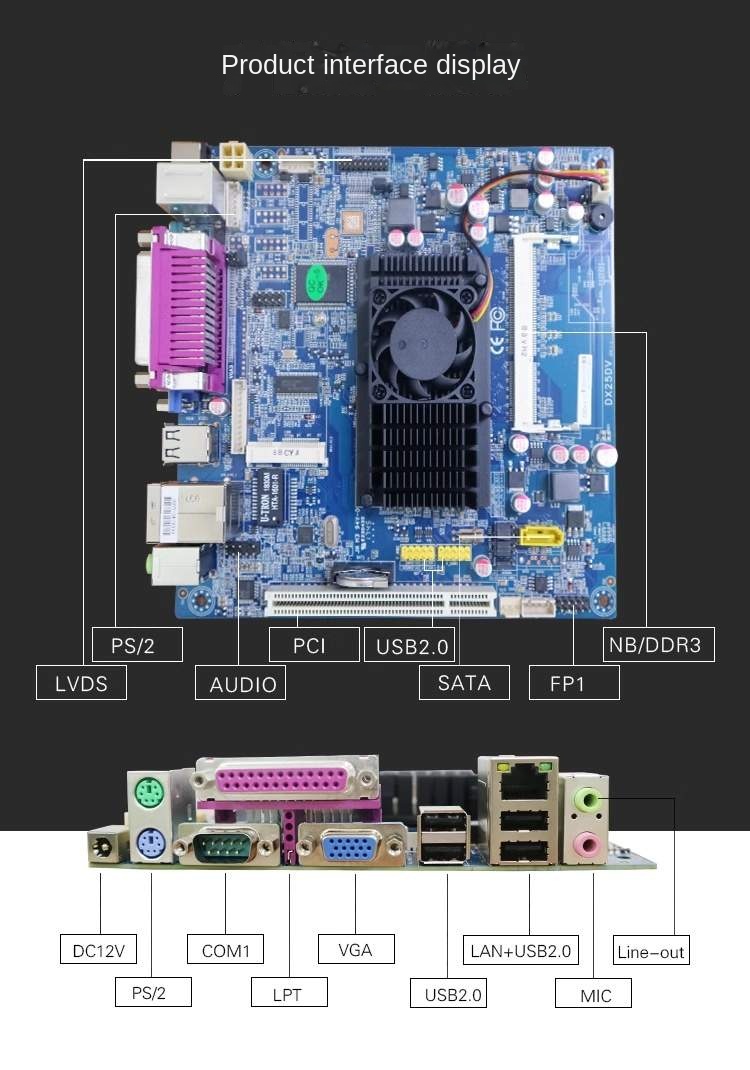

Display port: VGA port, and extended VGA output port

Dimensions (LxW) : 170mm x 170mm

SATA: Two SATais supporting 3GB/S

Serial port: Two COM ports, COM1/2:RS-232 mode

Parallel mouth: 1 well head

USB ports: 8 USB2.0 ports (4 rear panels,4 on-board pins)

PS/2 interface: PS/2 keyboard and mouse interface (board contains 6PIN keyboard and mouse row pins)

Network port: One RTL8105E 10/100M NIC, supports diskless RPL or PXE boot, supports network wake up

Display: GMA 3150 (CPU Integrated Graphics)

Sound card: ALC662 HD sound card Line out,MIC

Provides a front audio pin

Power supply type: DC-12V
