Italy’s original Arduino Nano Every development board ABX00028/33 ATmega4809

Short Description:

The Arduino Nano Every is an evolution of the traditional Arduino Nano board but with a more powerful processor, the ATMega4809, you can make larger programs than the Arduino Uno (it has 50% more program memory) and more variables (200% more RAM).

The Arduino Nano is suitable for many projects that require a microcontroller board that is small and easy to use. Nano Every is small and inexpensive, making it suitable for wearable inventions, low-cost robots, electronic Musical Instruments, and general use for controlling smaller parts of large projects.


Product Detail

Product Tags

Product introduction

The size of the Arduino Nano Every makes it ideal for wearable projects; In an experiment, prototype or full role-playing setup! Sensors and motors can be easily connected, which means it’s also suitable for robotics, drones and 3D printing.

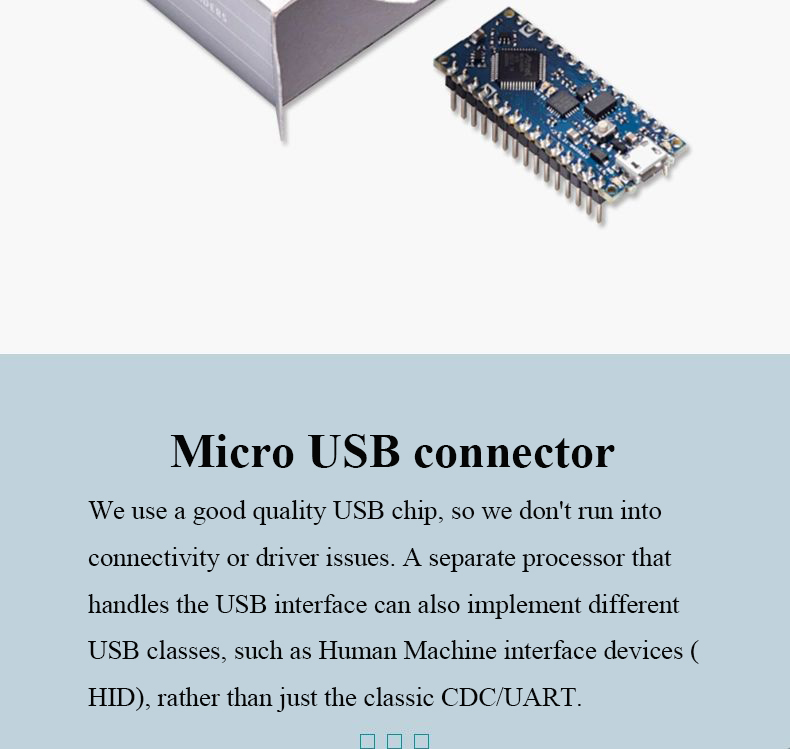

It’s reliable, affordable, and more powerful. The new ATmega4809 microcontroller fixes the limitations of the old Atmega328P-based board – you can add a second hardware serial port! More peripherals and memory means you can handle more ambitious projects. Configurable Custom Logic (CCL) is a great way to get beginners more interested in hardware. We used a quality USB chip, so people don’t experience connectivity or driver issues. A separate processor that handles USB interfaces can also implement different USB classes, such as Human Machine interface devices (HID), rather than just the classic CDC/UART.

The processor is the same as UnoWiFiR2 with more flash memory and more RAM.

In fact, we are at Uno WiFi R2 and Nano Every. ATmega4809 is not directly compatible with ATmega328P; However, we have implemented a compatibility layer that converts low-level register writes without any overhead, so the result is that most libraries and sketches, even those with direct access to GPIO registers, work out of the box.

The board is available in two options: with or without connectors, allowing you to embed Nano Every into any type of invention, including wearables. The board has a Mosaic connector and no components on the B side. These features allow you to solder the board directly onto your own design, minimizing the height of the entire prototype.

Electrical and electronic control systems

Electrical and electronic control systems

Product parameter

Microcontroller ATMega4809
Operating voltage 5V
Minimum VIN – Maximum VIN 7-21V
Dc current for each I/O pin 20 mA
3.3V pin DC current 50 mA
Clock speed 20MHz
CPU flash 48KB(ATMega4809)
RAM 6KB(ATMega4809)
EEPROM 256 bytes (ATMega4809)
PWM  pin 5(D3D5D6D9D10)
UART 1
SPI 1
I2C 1
Simulate the input pin 8(ADC 10bit)
Analog output pin Via PWM only (no DAC)
External interrupt All digital pins
LED_ BUILTIN 13
USB Use ATSAMD11D14A
Length 45mm
Breadth 18mm
Weight 5g(Take the lead)
