Jetson Xavier NX Development Kit AI Intelligent development board NVIDIA embedded module

Short Description:

Suitable for embedded applications

The Jetson Xavier NX is currently available for smart edge devices such as robots, drone smart cameras, and portable medical devices. It can also enable larger and more complex deep neural networks


Product Detail

Product Tags

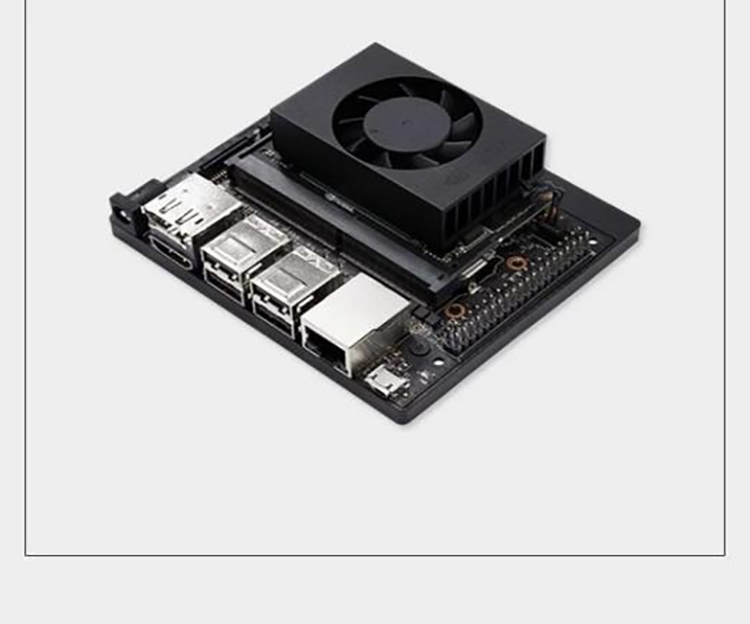

Jetson Xavier NX development Kit

The NVIDIA Jetson Xavier NX developer suite brings supercomputer performance to the edge. The suite includes a Jetson XavierNX module that enables the development of multi-model AI applications using NVIDIA software stacks under 10W. Cloud-native support makes it easier to develop AI software and deploy it to edge devices. The Developer Suite has the entire NVIDIA software stack, including support for accelerated SDKS and new NVIDIA tools built specifically for application development and optimization.

asd (1)

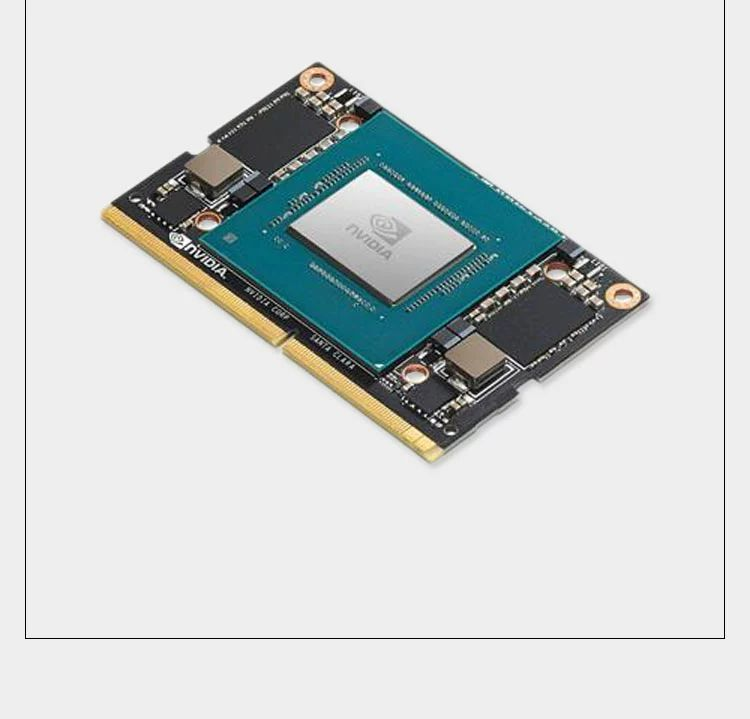

Jetson Xavier NX development module

The NVIDIA Jetson Xavier NX module is only 70x45mm in size and delivers server performance of 21 TOPS (15W) or up to 14 TOPS (10W). It can run multiple modern neural networks in parallel and process data from multiple high-resolution sensors, meeting the requirements of a full AI system. Supporting cloud-native technologies makes it easier to develop AI software and deploy it to edge devices. It can be applied to mass production and supports all popular AI frameworks.

asd (2)

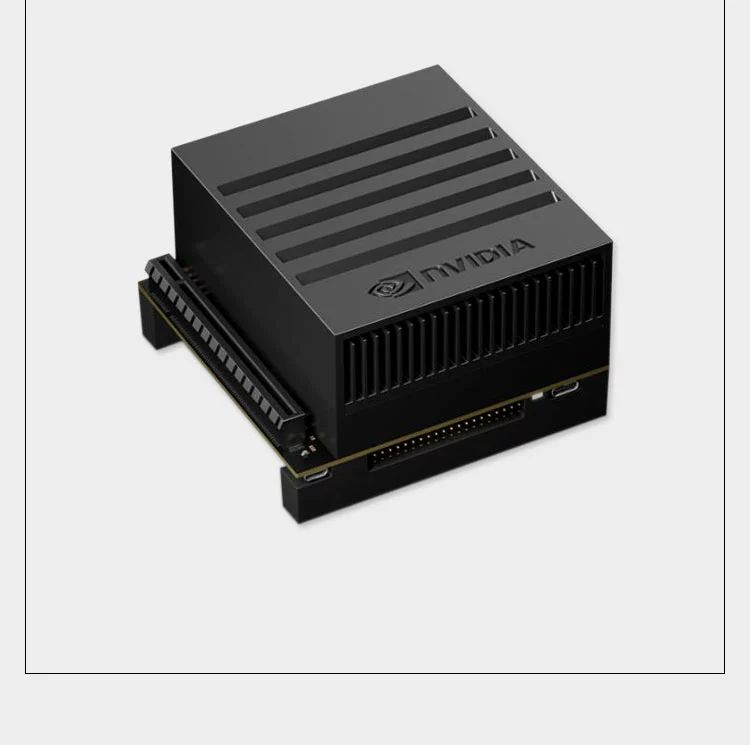

Jetson AGX Xavier development Kit

The NVIDIA Jetson AGX Xavier is an upgraded version of the NVIDIA JetsonTX2 with 20 times better performance and 10 times more energy efficiency than the TX2. It supports NVIDIA JetPack and DeepStreamSDK as well as the CUDAR, cuDNN, and TensorRT software libraries, and offers a range of ready-to-use tools that make it easy and fast for users to create and deploy end-to-end Al robot applications. For manufacturing, delivery, retail, agriculture, etc. With Jetson AGX Xavier, you can build AI-powered autonomous machines that can run at as little as 10W while achieving up to 32 TOPS. Part of the industry-leading Al computing platform,Jetson AGX Xavier benefits from NVIDIA's extensive suite of AI tools and workflows to help developers quickly train and deploy neural networks.

asd (3)

Jetson Xavier NX suite parameters

GPU NVIDIA Volta architecture with 384 NVIDIA
CUDA coresand 48 Tensor cores
CPU 6-core NVIDIA Carmel ARM v8.264-bit CPU
6 MB L2+4 MB L36MB L2+4MB L3
DL accelerator 2x NVDLA Engines
Vision accelerator 7-Way VLIW Vision Processor
Internal memory 8 GB 128-bit LPDDR4x @51.2GB/s
Storage space A Micro SD is required
Video coding 2x4K @30|6x 1080p @60|14x 1080p @
30(H.265/H.264)
Video decoding 2x4K  @60|4x  4K  @30|12x  1080p  @60
32x1080p @30(H.265)2x 4K @30|6x
1080p @60|16x 1080p @30(H.264)
Camera 2x MIP|CSl-2 DPHY lanes
Network Gigabit Ethernet,M.2 Key E(WiFi/BT
included),M.2 Key M(NVMe)
Display interface HDMI and display port
USB 4x USB 3.1,USB 2.0 Micro-B
Other GPIO,I2 C,I 2 S,SPI,UART
Specification and size 103x90.5x34.66 mm



Jetson Xavier NX module parameters

Name

10 W

15 W

Al performance 14 TOPS(INT8) 21 TOPS (INT8)
GPU 384-core NVIDIA Volta GPU with 48 Tensor
Cores
GPU Max
Freq
800 MHz 1100 MHz
CPU 6-core NVIDIA Carmel ARM v8.264-bit CPU
6MB L2+4MB L3
CPU Max
Freq
2-core @1500MHz
4-core @1200MHz
2-core @1900MHz
4/6-core @1400Mhz
Internal memory 8 GB 128-bit LPDDR4x @1600 MHz
51.2GB/s
Storage space 16 GB eMMC 5.1
Power 10W|15W
PCle 1x1+1x4
(PCle Gen3,Root Port &Endpoint)
CSI camera Up to 6 cameras (36 via virtual channels)
12 lanes MIPI CSI-2
D-PHY 1.2(up to 30 Gbps)
Video coding 2x464MP/sec(HEVC),2x 4K @30(HEVC)
6x 1080p @60(HEVC)
14x1080p @30(HEVC)
Video decoding 2x690MP/sec(HEVC),2x 4K @60(HEVC)
4x 4K @30(HEVC),12x 1080p @60(HEVC)
32x 1080p @30(HEVC)
16x1080p @30(H.264)
Display 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0
DL accelerator 2x NVDLA Engines
Vision accelerator 7-Way VLIW Vision Processor
Network 10/100/1000 BASE-T Ethernet
Specification and size 45  mmx69.6  mm
260-pin SO-DIMM connector



Developer suite I/O

Jetson    AGX    Xavier
Module interface

PCle X16 PCle X16X8 PCle Gen4/x8 SLVS-EC
RJ45 Gigabit Ethernet
USB-C Two USB 3.1 ports, DP ports (optional), and PD ports
Optional) Support closed system debugging and write through the same port
Camera interface (16)CSI-2 channels
M.2 Key M NVMe
M.2 Key E PCle x1+USB 2.0+UART (for Wi-Fi/LTE)/
2S+DMIC    +GPIOs
40 pin joint UART+SPI+CAN+I2C+I2S+DMIC
+GPIOs
Hd audio Hd audio connector
eSTATp+USB
3.0 Type A
SATA interface +USB 3.0 with PCle x1 bridge
(PD+ for 2.5-inch SATA interface data)
HDMI Type A HDMI 2.0
μSD/UFS card SD/UFS
