LCD Controller Board RGB TTL LVDS AD board with VGA+HDMI Interface DC12V PCBA baord

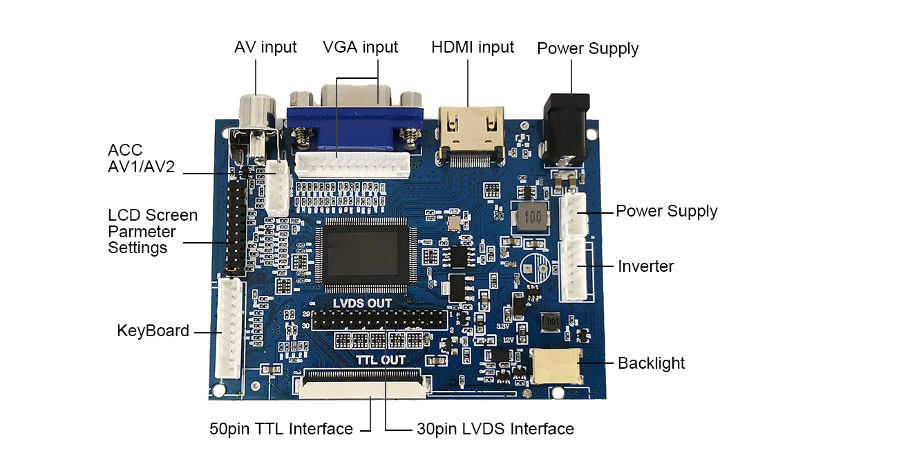

LCD Controller Board:

HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

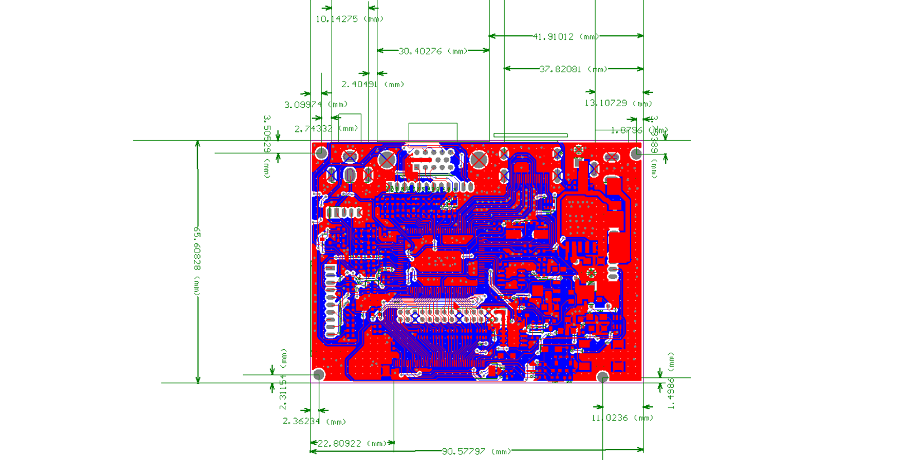

Board Size:91mm x 66mm x 12mm

Application: Automotive display, automotive electronics, comm device, desktop monitor, digital photo frame, digital still camera, digital signage, digital video camera, e-book reader, edu&ent, electronic price tag, financial & tax, gaming, handheld&PDA, HMD VR AR, Healthcare, Home Appliance, Industrial application, instruments & meters, interactive whiteboard, laptop, medical imaging, MID UMPC, mobile phone, MP3 player Mp4 PMP, netbook PC, outdoor high brightness, Pad & Tablet, printer, pocket tv, portable dvd player, portable navigation, projector, smart bracelet, smart watch, stretched bar lcd, time & counter, transparent display, tv sets, video door phone, video wall, voip phone

This driver board uses SIXTHHD-HD1 main control IC,
This driver board can
Supports more than 30 different LCD screen resolution settings, and will continue to increase in the future. . .
1, 1 VGA signal input
2, 2 AV signal input
3. 1 channel HDMI signal input, and this IC supports HDMI1.2
4. 1-way reversing signal input
5, support wide voltage input, and can work normally between 4.5V-20V,
6, standard backlight 6PIN, interface, can be connected to a high-voltage board
7. The driver board integrates the LCD screen LED backlight driver board circuit,
8. Standard LVDS signal output, can support single 6, single 8, double 6, double 8 and other standard LVDS signal LCD screens, but only support LCD screens with a screen power supply of 3.3V

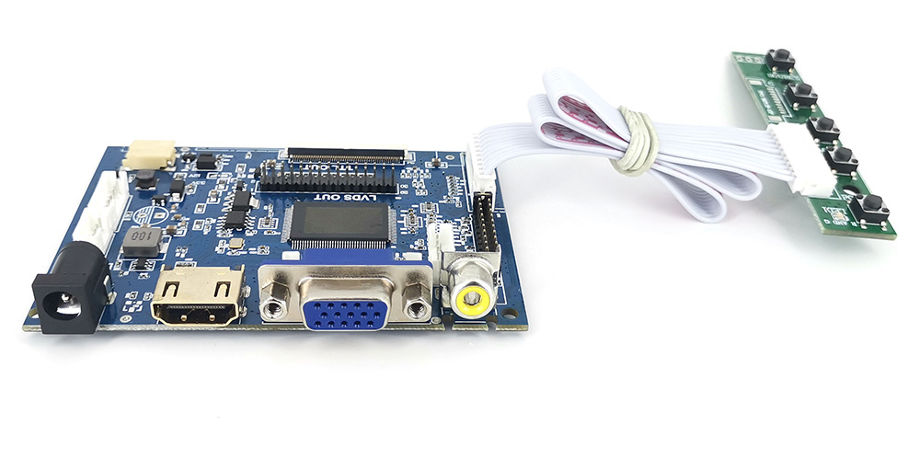

9. Standard key board interface, and supports two-color LED indicator display
10, support TTL signal output,
Support AT070TN92,
       AT065TN14
       AT080TN52
       AT090TN12
       AT090TN10
       AT070TN90
       AT070TN93
       AT070TN94, etc., general 50PIN interface TTL LCD screen
Cooperate with our company's PCB800602 adapter board
Can effectively support, Hancai, A U O, Tianma, BOE, China and other general 60PIN definition TTL interface
For example, HSD070IDW1, A070VW04, A080SN01, A104SN01, HSD084IDW1, etc.,

1. With our company's LCD screen adapter board numbered PCB800100 or PCB800185, it can support the following LCD screens
   EJ070NA01-1024X600 resolution
   EJ080NA04B-1024X768 resolution
   ZJ070NA01, the model of universal 40PIN high score LCD screen
   12. With PCB800100, it can also support 4.3, 5, 6, 7 inches, 40PIN universal screen, see AT0543TN24V,1 for the definition
   13. The maximum output display resolution of this driver board is 1920X1080 and 1440X900 when the display resolution exceeds 1440X900, it is necessary to increase the heat sink depending on the working conditions of the IC to reduce the operating temperature of the IC)
   14 ICs, support VGA, and HDMI port upgrade
   15. This driver board can add remote control function (requires software implementation)
   16. This driver board can automatically detect and display the relevant input voltage information ----- Note, this function is a custom function, you need to contact our company's technical department.
