Low-cost wireless communication Internet of Things CAT1 network 4G data transmission module DTU485/232 transparent transmission MQTT

Short Description:

Product characteristics

The device configuration parameters need to be configured by sending relevant AT instructions through the serial port. It only takes a few simple steps to realize the connection and communication with the server, which is easy to use and convenient for customers to quickly integrate.


Product Detail

Product Tags

Military Internet of Things systems

Characteristic advantage

-409C~+85°C, a variety of harsh working environment

Communication ports and power ports are isolated and highly protected

Lightning protection, surge protection and other multiple protection

Very simple AT instruction parameter configuration

The metal housing has excellent shielding effect to enhance the reliability of the radio station

Wide compatibility

Product basic function introduction

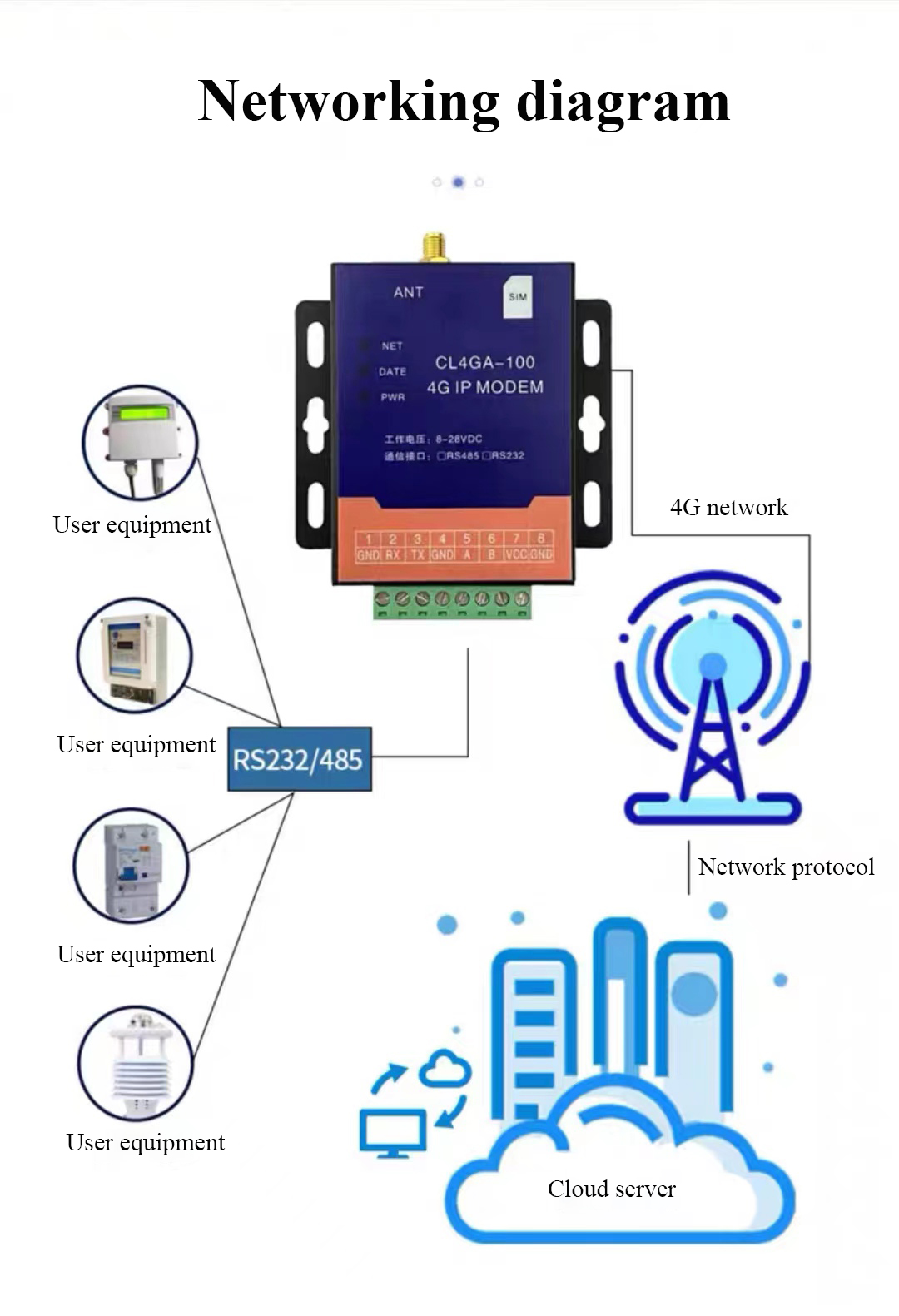

The CL4GA-100 is a cost-effective 4GDTU developed using 4G CAT1 technology. The main function is to realize bidirectional transparent transmission between serial device and network server, using RS485/RS232 interface respectively. Supports 8 to 28VDC input voltage. Relying on the operator’s mature network, there is no limitation of communication distance, and it has the advantages of wide network coverage and strong anti-interference ability. Easy integration into iot projects. The equipment is small in size and easy to install. Set up with simple AT instructions in just a few steps, it is easy to use this product to achieve bi-directional data transparent transfer from serial port to network. Device support Support TCP UDP MQTT protocol, easy to achieve iot applications.

Industrial Internet of Things systems

Parameter index

Main parameter

Description

Remark

Supply voltage

8V~28V

12V1A power supply is recommended

Operating temperature (“C “)

-40° ~+85°

Support band

LTE-TDD :B34/B38/B39/B40/B41

LTE-FDD: B1/B3/B5/B8

Antenna interface

SMA-K

Power interface

Terminal

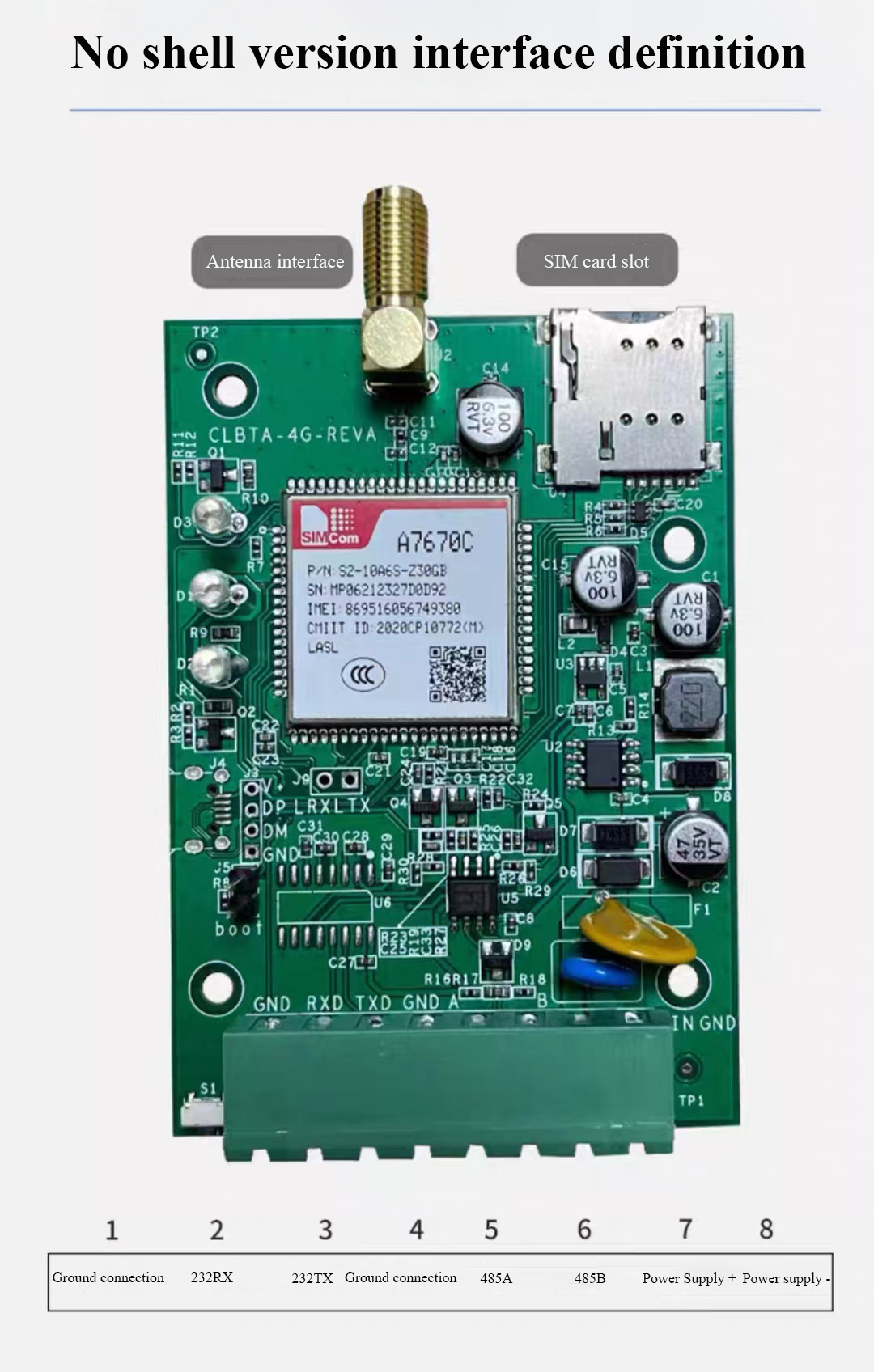

Communication interface

RS485/RS232

There are two versions, RS485/RS232 can only be used.

Baud rate

300~ 3686400

Parity check, stop bit data bit can be set

Weight

About 208g

Power consumption (related to environment and other factors, for reference only)

Standby: 30mA@12V/ Access :500mA@12V/ Transfer: 70mA@12V/
