Medical equipment PCB Medical electronics

Short Description:

1.Application: electrocardiogram detector

Number of floors: 8

Plate thickness: 1.2mm

Line width line distance: 3/3mil

Surface treatment: Sunk gold


Product Detail

Product Tags

Product Description

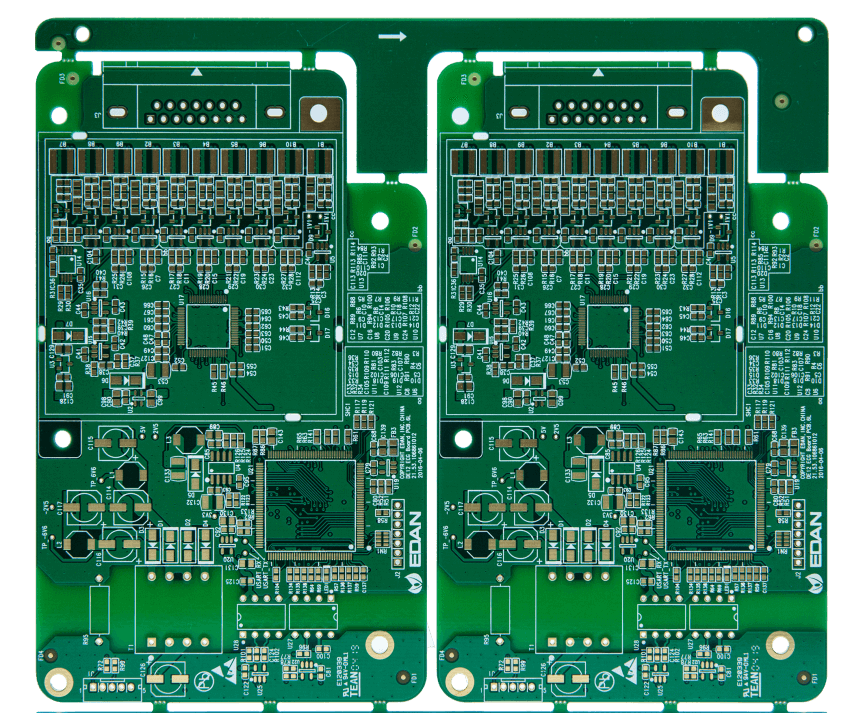

Medical electronics1
  • Application: electrocardiogram detector
  • Number of floors: 8
  • Plate thickness: 1.2mm
  • Line width line distance: 3/3mil
  • Surface treatment: Sunk gold

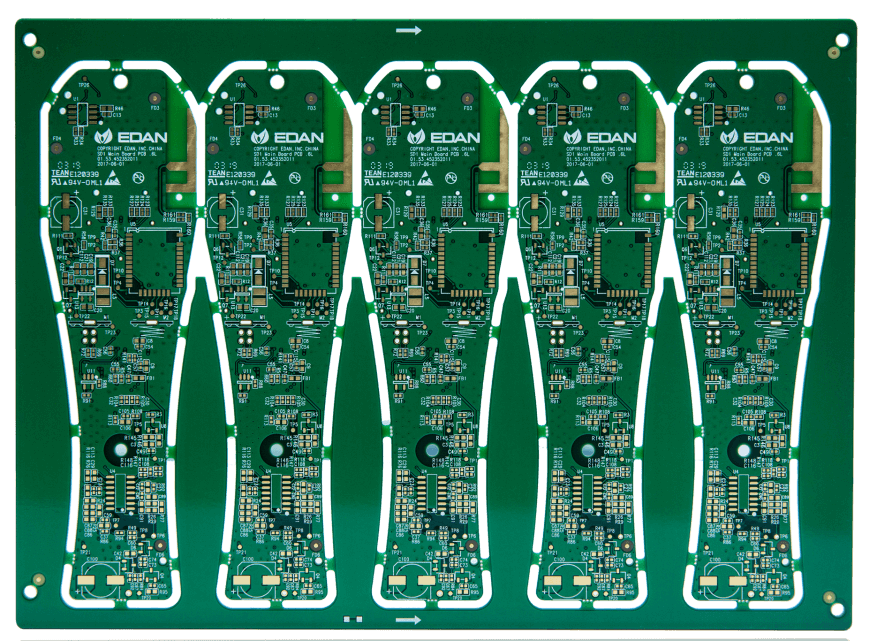

Medical electronics2
  • Application: Fetal heart Doppler instrument
  • Number of floors: 6
  • Plate thickness: 1.2mm
  • Line width line distance: 3/3mil
  • Surface treatment: Sunk gold

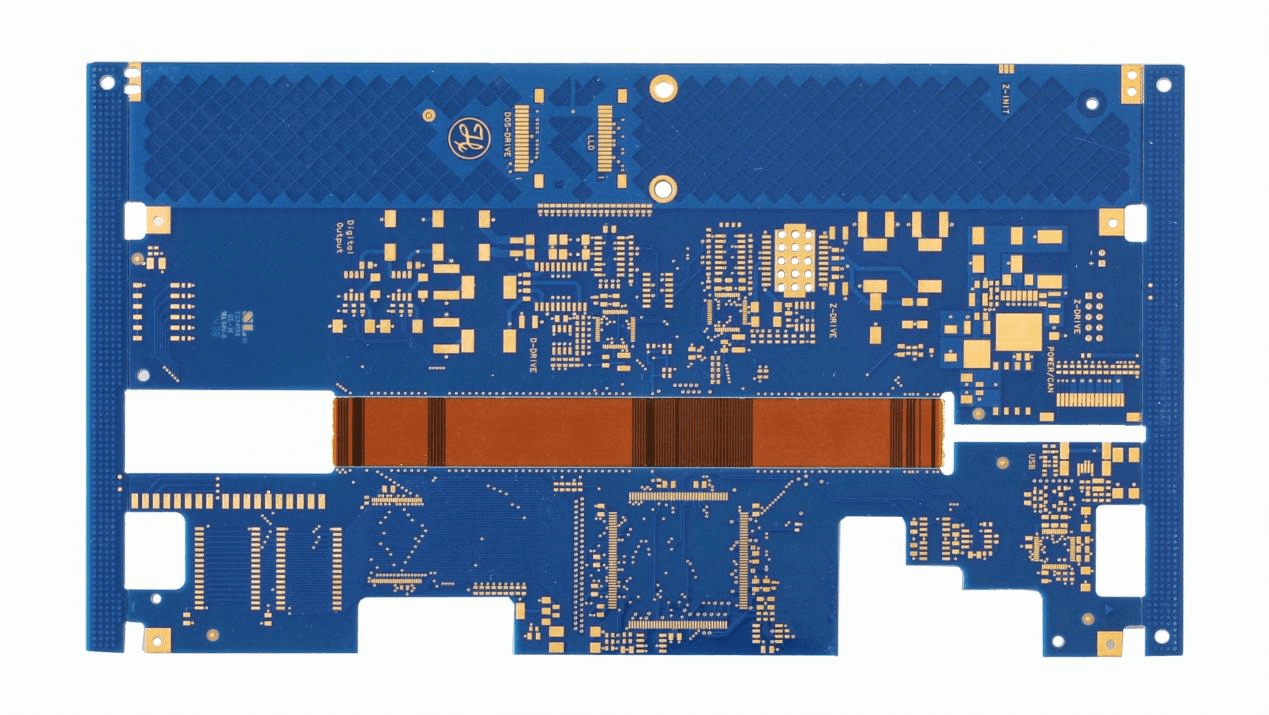

Medical electronics3
  • Application field: Medical equipment
  • Type number: M06C02474
  • Number of floors: 6
  • Plate thickness: 1.5mm
  • Chi inch: 259*142mm
  • Board: FR4+PI+NFPP
  • Plate copper thickness: ≥35um
  • Copper thickness in the hole: 20um
  • Line width Line distance: 0.1mm
  • Minimum aperture: 0.1mm
  • Surface treatment: gold sinking ≥1u"
