MX-6924 F5 Qualcomm QCN9024/5GHz/4×4 MIMO/PCI Express 3.0/802.11ax/WiFi6 module

Short Description:

OTOMO MX6924 F5 is an embedded wireless network card that uses M.2 E-key interface and supports PCI Express 3.0 protocol. Using Qualcomm® 802.11ax Wi-Fi technology, support 5180-5850 GHZ band, with AP and STA capabilities, 4×4 MIMO and 4 spatial streams.


Product Detail

Product Tags

Product overview

The MX6924 F5 is an embedded wireless network card that uses M.2 E-key interface and supports PCI Express 3.0 protocol. Adopt Qualcomm® 802.11ax Wi-Fi technology, support 5180-5850GHz band, with AP and STA functions, 4×4 MIMO and 4 spatial streams, suitable for 5GHz IEEE802.11a/n/ac/ax applications, Compared with the previous generation of wireless cards, the transmission efficiency is higher, and has dynamic frequency selection (DFS) function.

Product specification

Product type Wireless network card
Chip QCN9024
IEEE standard IEEE 802.11ax
Port PCI Express 3.0, M.2 E-key
Operating voltage 3.3 V
Frequency range 5180~5320GHz 5745~5825GHz
Modulation technique 802.11n:OFDM (BPSK,QPSK,16-QAM,64-QAM,256-QAM)802.11ac:OFDM (BPSK,QPSK,16-QAM,64-QAM,256-QAM)802.11ax:OFDMA (BPSK,QPSK,DBPSK,DQPSK,16-QAM,64-QAM,256-QAM,1024-QAM,4096-QAM)
Output power (single channel) 802.11ax: Max. 24dBm
Power dissipation ≦15W
Receiving sensitivity 11ax:HE20 MCS0 <-95dBm / MCS11 <-62dBmHE40 MCS0 <-89dBm / MCS11 <-60dBmHE80 MCS0 <-86dBm / MCS11 <-56dBmHE160 MCS0 <-87dBm / MCS9 <-64dBm
Antenna interface 4 x U. FL
Working environment Temperature: -20°C to 70°CHumidity: 95% (non-condensing)
Storage environment Temperature: -40°C to 90°CHumidity: 90% (non-condensing)
Authentication RoHS/REACH
Weight 18g
Size (W*H*D) 55.9 x 52.8x 8.5mm (deviation ±0.1mm)

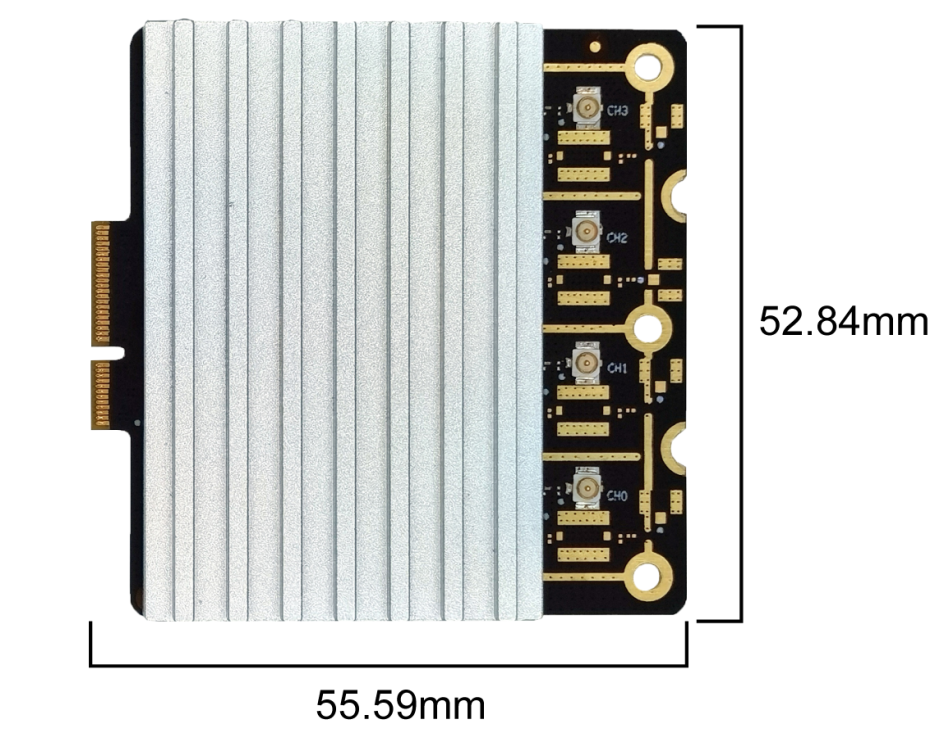

Module size
