MX – 6974 F5 qualcomm QCN9074/4 x4 MIMO / 5 GHZ/PCI Express3.0/802.11 ax/WIFI6 module

Short Description:

OTOMO MX6974 F5 is an embedded WiFi6 wireless card with a PCI Express 3.0 interface and M.2 E-key. The wireless card uses Qualcomm® 802.11ax Wi-Fi 6 technology, supports the 5180-5850 GHZ band, and can perform AP and STA functions.


Product Detail

Product Tags

Product overview

The MX6974 F5 is an embedded WiFi6 wireless card with a PCI Express 3.0 interface and M.2 E-key. The wireless card uses Qualcomm® 802.11ax Wi-Fi 6 technology, supports 5180-5850GHz band, can perform AP and STA functions, and has 4×4 MIMO and 4 spatial streams, suitable for 5GHz IEEE802.11a/n/ac/ax applications. Compared with the previous generation of wireless cards, the transmission efficiency is higher, and has dynamic frequency selection (DFS) function.

Product specification

Product type WiFi6 wireless module
Chip QCN9074
IEEE standard IEEE 802.11ax
Port PCI Express 3.0, M.2 E-key
Operating voltage 3.3 V / 5 V
Frequency range 5G: 5.180GHz to 5.850GHz
Modulation technique 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)802.11ax: OFDMA (BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM)
Output power (single channel) 802.11ax: Max. 21dBm
Power dissipation ≦15W
Receiving sensitivity 11ax:HE20 MCS0 <-89dBm / MCS11 <-64dBmHE40 MCS0 <-89dBm / MCS11 <-60dBmHE80 MCS0 <-86dBm / MCS11 <-58dBm
Antenna interface 4 x U. FL
Working environment Temperature: -20°C to 70°CHumidity:95% (non-condensing)
Storage environment Temperature: -40°C to 90°CHumidity:90% (non-condensing)
Authentication RoHS/REACH
Weight 20g
Size (W*H*D) 60 x 57 x 4.2mm (deviation ±0.1mm)

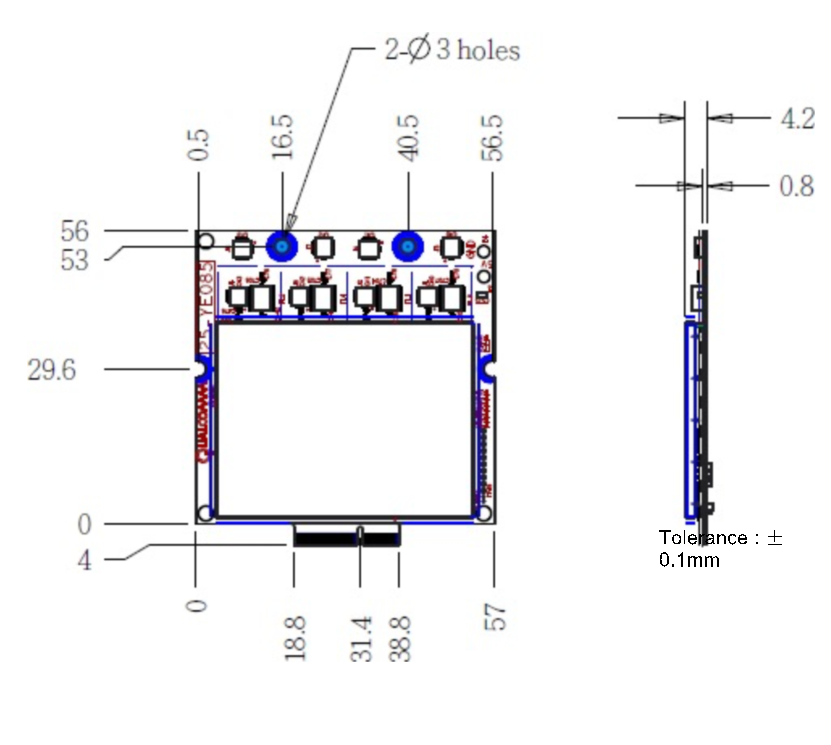

Module size and recommended PCB mode
