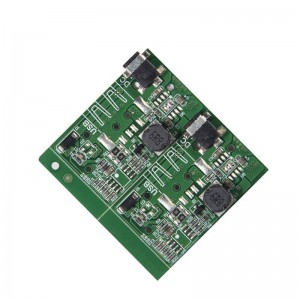

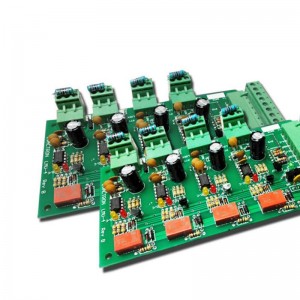

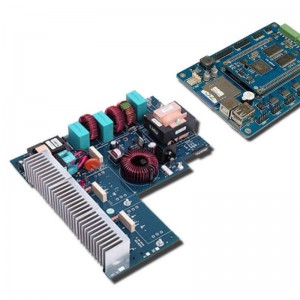

ODM PCBA High Quality Motherboard for Industrial

Short Description:

Application:
Aerospace, BMS, Communication, Computer, Consumer Electronics, Home appliance, LED, Medical Instruments, Motherboard, Smart electronics, Wireless charging.

Feature: Fexible PCB, High density PCB.

Insulation Materials: Epoxy Resin, Metal Composite Materials, Organic Resin.

Material: Aluminum Covered Copper Foil Layer, Complex, Fiberglass Epoxy, Fiberglass Epoxy Resin & Polyimide Resin, Paper Phenolic Copper Foil Substrate, Synthetic Fiber.

Processing Technology: Delay Pressure Foil, Electrolytic Foil


  • Model Number: XinDaChang-0199
  • Brand Name: XinDaChang
  • Origin: China
  • Small Orders: Accepted
  • Product Detail

    Product Tags

    Key Specifications/ Special Features:

    Items Capability
    OEM PCB Layers 1-28 layers
    OEM PCB material FR4, FR5, Aluminium,High Tg FR4, Halogen Free, Isola, Rogers
    OEM PCB Finished Board Thickness 0.2mm ~ 7.0mm(8mil-276mil)
    OEM PCB Copper Thickness 1/3oz ~ 7oz
    OEM PCB Max gold plating thickness 50 microinch
    OEM PCB Min. Trace Width/Space 0.075/0.075mm(3/3mil)
    OEM PCB Min. Finish Holes Size 0.1mm(4mil) for laser holes; 0.2mm(8mil) for mechanical holes
    OEM PCB Max.Finshed Size 600mm x 900mm (23.6" x 35.43"
    OEM PCB Hole Tolerance PTH:±0.076mm(+/-3mil), NTPH/±0.05mm(+/-2mil)
    OEM PCB Soldermask Color Green, White, Black, Red, Yellow, Blue,ect
    OEM PCB Silkscreen Color White, Black, Yellow, Blue
    OEM PCB Impedance Control +/-10%
    OEM PCB Profiling Punching Routing, V-CUT, Chamfer
    OEM PCB Special Holes Blind/Buried holes, Countersunk holes
    OEM PCB Surface Finishing HASL, Lead Free HASL, Immersion tin, Immersion gold,  Gold plating, Immersion silver, OSP, Carbon, etc.
    OEM PCB Certificate UL, ISO9001, ROHS, SG

    Testing

    Industrial automation control system
    • 1. We offer high quality PCB & PCBA Service for Industrial control Board, Financial Industrial Board, Automatic PCBs, New enery controller PCBAs, Medical equipment printed circuits and other high level circuit boards.
    • 2. We offer one-stop service for PCB , including PCB manufacturing, parts sourcing, X-RAY, AOI testing, Function testing, final assembly if requested.

    Shipping Information

    Automatic control system

    FOB Port

    Shenzhen

    Weight per Unit

    1.1 Kilograms

    HTS Code

    8537.10.90 90

    Export Carton Dimensions L/W/H

    100 x 80 x 120 Centimeters

    Lead Time

    5–15 days

    Dimensions per Unit

    80.0 x 50.0 x 100.0 Centimeters

    Units per Export Carton

    100.0

    Export Carton Weight

    2.3 Kilograms

    Main Export Markets

    Elevator control system
    • - Asia
    • - Australasia
    • - Central/South America
    • - Eastern Europe
    • - Mid East/Africa
    • - North America
    • - Western Europe

    FAQs

    Q1. What files do you use in PCB and assembly Quotation?

    Gerber, pcb. Auto CAD + Bill of Material.

    Q2. How do you make sure the quality?

    Our Product is all 100% tested including Flying Probe Test (for sample), E-test (mass) or AOI.

    Q3. What is the lead time?

    It takes 3-5 working days for sample, 7-10 working days for batch production based on files and quantity.

    Q4. Will you keep our information and files secret?

    Sure! It is our basic principle to keep business secrets to protect our customers' rights and behalf.

    Q5. How to work with you?

    -Email and send us the PCB layout file, BOM list
    - We will provide reply confirmation within 12 hours and reply to the offer within 1-2 days.
    - Waiting for your company to confirm the price, order and payment method.
    - We will start the production.
