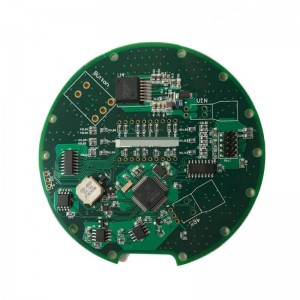

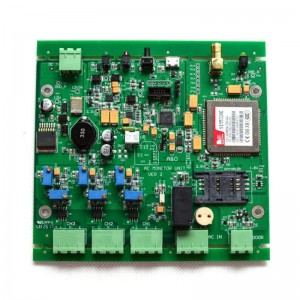

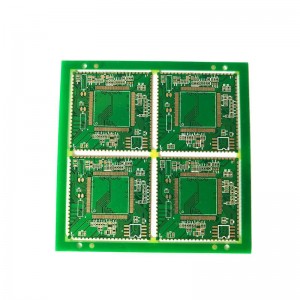

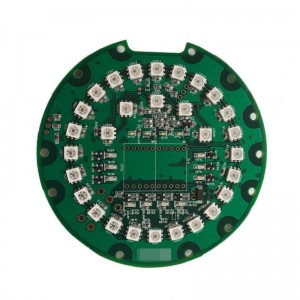

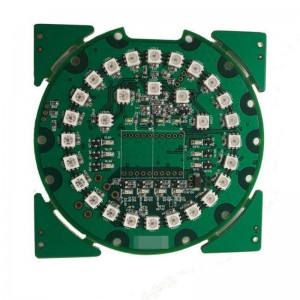

PCBA for sensor production

Short Description:

Key Specifications/ Special Features:
PCB assemblies key specifications/special features:

Our PCB assembly/OEM/ODM contract manufacturing services over 10 years:

PCB fabrication and layout:1 to 20 layers

Components global procurement capability

Mechanical capability

PCB assembly (SMT + DIP + programming + testing)


  • Brand Name: OEM
  • Origin: China
  • Small Orders: Accepted

    • Product Detail

    Product Tags

    Shipping Information

    FOB Port

    China (Mainland)

    Lead Time

    7–15 days

    Our SMT capability:

    Chinese PCB manufacturers



    • SMT assembly
    • 2 sets high-speed SMT machine
    • 2 sets automatic printers with fiduciary alignment
    • 2 sets ICT test machines
    • THT assembly
    • 2 sets of wave soldering machine lines
    • 1 set of automatic component inserter: IST-4000

    Quality system:

    Automatic control system
    • ISO 9001:2008
    • UL certification
    • IPC-610D/E, class II compliance
    • ICT, AOI, functional test
    • Stock control under ERP system

    PCBA capabilities:

    Industrial automation control system
    • 1) SMT assembly including BGA assembly
    • 2) Accepted SMD chips: 01005, BGA, QFP, QFN, TSOP
    • 3)Component height: 0.2-25mm
    • 4)Min packing: 0201
    • 5) Min distance among BGA: 0.25-2.0mm
    • 6)Min BGA size: 0.1-0.63mm
    • 7)Min QFP space: 0.35mm
    • 8) Min assembly size: (X) 50 * (Y) 30mm
    • 9)Max assembly size: (X): 350 * (Y) 550mm
    • 10) Pick-placement precision: ±0.01mm
    • 11) Placement capability: 0805, 0603, 0402, 0201
    • 12) High-pin count press fit available
    • 13)SMT capacity per day: 800,000 points

    Advantages:

    Sensor control system
    • 1) Strict product liability, taking IPC-A-160 standard
    • 2)Engineering pretreatment before production
    • 3) Production process control (5ms)
    • 4) 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
    • 5) 100% AOI inspection, including X-ray, 3D microscope and ICT
    • 6) High-voltage test, impedance control test
    • 7)Microsection, soldering capacity, thermal stress test, shocking test
    • 8)In-house PCB production
    • 9) No minimum order quantity and free sample
    • 10) Focus on low to medium volume production
    • 11)Quick and on-time delivery

    Main Export Markets

    PCBA manufacturer in China
    • - Asia
    • - Australasia
    • - Central/South America
    • - Eastern Europe
    • - Mid East/Africa
    • - North America
    • - Western Europe
