Raspberry Pi 4B

Short Description:

The Raspberry Pi 4B is a new addition to the Raspberry PI family of computers. The processor speed is significantly improved compared to the previous generation Raspberry Pi 3B+. It has rich multimedia, plenty of memory and better connectivity. For end users, the Raspberry Pi 4B offers desktop performance comparable to entry-level x86PC systems.

The Raspberry Pi 4B has a 64-bit quad-core processor running at 1.5Ghz; Dual display with 4K resolution up to 60fps refresh; Available in three memory options: 2GB/4GB/8GB; Onboard 2.4/5.0 Ghz dual-band wireless WiFi and 5.0 BLE low energy Bluetooth; 1 gigabit Ethernet port; 2 USB3.0 ports; 2 USB 2.0 ports; 1 5V3A power port.

Send email to us

Product Detail

Product Tags

Model number	Pi3B+	Pi 4B	Pi 400
Processor	64-bit 1.2GHz quad-core	64-bit 1.5GHz quad-core
Running memory	1GB	2GB、4GB、8GB	4GB
Wireless WiFi	802.1n Wireless 2.4GHz / 5GHz dual-band WiFi

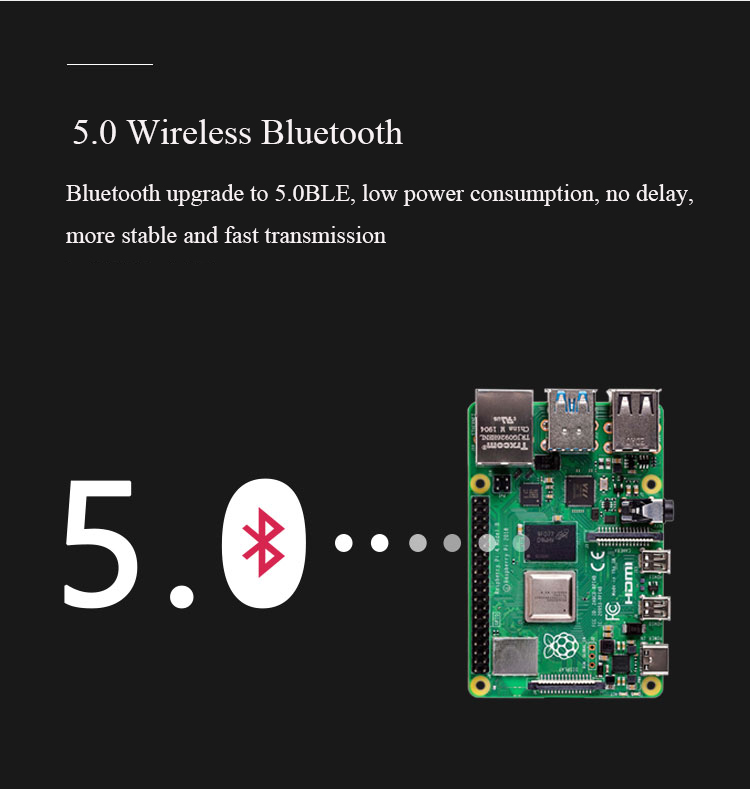

Wireless Bluetooth	Bluetooth4.2 BLE	Bluetooth 5.0 BLE
Ethernet net port	300Mbps	Gigabit Ethernet
USB port	4 USB 2.0 ports	2 USB 3.0 ports 2 USB 2.0 ports	2 USB 3.0 ports 1 USB 2.0 ports
GPIO port	40 GPIO pins
Audio and video interface	1 full size HDMI Port,MIPI DSI display Indicates port,MIPI CSI Camera, stereo output and composite video port	2 micro HDMI ports for video and sound, up to 4Kp60. MIPI DSI display port, MIPI CSI camera port,stereo audio and composite video port
Multimedia support	H.264，MPEG-4 Decode: 1080p30. H.264 code: 1080 p30. OpenGL ES: 1.1, 2.0graphics.	H.265:4Kp60 decoding H.264:1080p60 decoding, 1080p30 encoding OpenGL ES: 3.0 graphics
SD Card support	MicroSD card interface
Power supply modc	Micro USB	USB type C
USB type C	With POE function (additional module required)		POE function is not enabled
Input power	5V 2.5A	5V 3A
Resolution support	1080 resolution	Up to 4K resolution supports dual displays
Working environment	0-50C

The Raspberry Pi 4 Model B (Raspberry Pi 4 Model B) is the fourth generation of the Raspberry PI family, a high-performance, low-cost microcomputer. It comes with a 1.5GHz 64-bit quad-core ARM Cortex-A72 CPU (Broadcom BCM2711 chip) that significantly boosts processing power and multitasking performance. The Raspberry PI 4B supports up to 8GB of LPDDR4 RAM, has a USB 3.0 port for faster data transfer and, for the first time, introduces a USB Type-C power interface for faster charging and power.

The model also features dual Micro HDMI interfaces that can simultaneously output 4K resolution video to two monitors, making it ideal for efficient workstations or multimedia centers. Integrated wireless connectivity includes 2.4/5GHz dual-band Wi-Fi and Bluetooth 5.0/BLE, ensuring flexible network and device connectivity. In addition, the Raspberry PI 4B retains the GPIO pin, allowing users to connect a variety of sensors and actuators for extended development, making it ideal for learning programming, iot projects, robotics and a variety of creative DIY applications.
