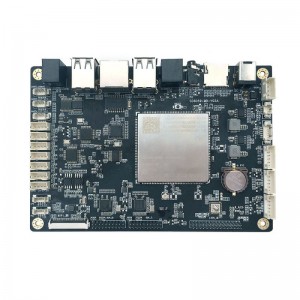

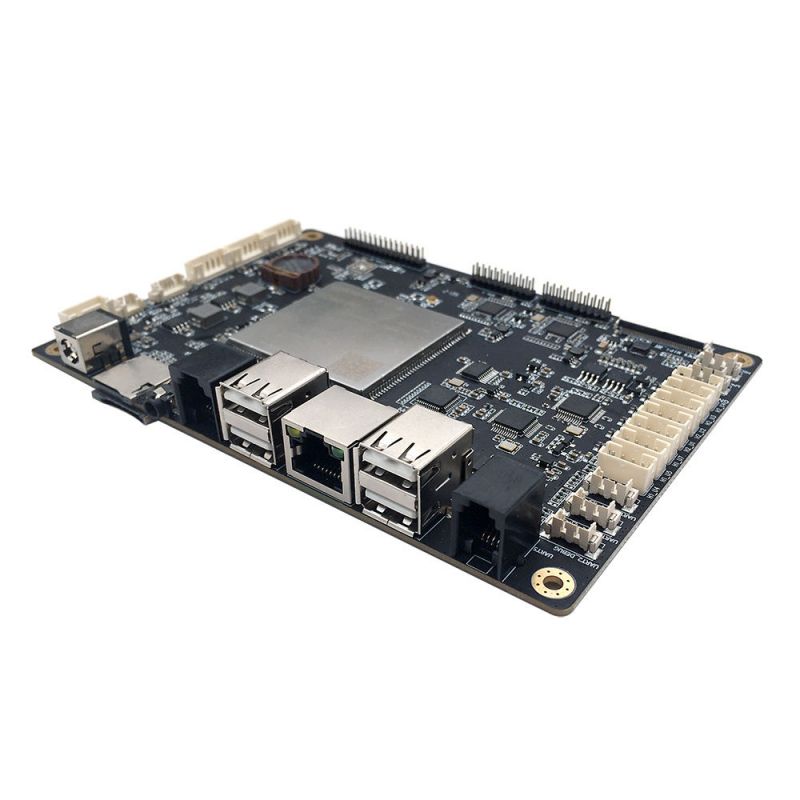

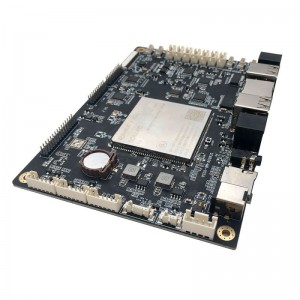

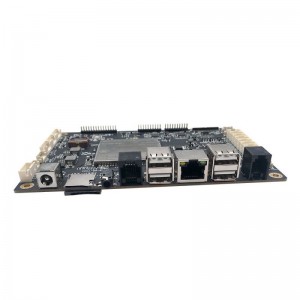

Smart Factory gps pcb print circuit board oem pcba board assembly

Short Description:

Key Specifications/ Special Features:

Application:
Aerospace, BMS, Communication, Computer, Consumer Electronics, Home appliance, LED, Medical Instruments, Motherboard, Smart electronics, Wireless charging.


  • Model Number: XinDaChang-01007
  • Brand Name: ODM and OEM
  • Origin: China
  • Small Orders: Accepted
  • Product Detail

    Product Tags

    Product Specification:

    Item

    Paramter

    Board Type:

    Rigid PCB, Flexible PCB, metal core PCB,Rigid-Flex PCB

    Board Shape:

    Rectangular, Circular and any Odd Shapes

    Size:

    50*50mm~400mm * 1200mm

    Min Package:

    01005 (0.4mm*0.2mm),0201

    Fine Pitch Parts:

    0.25mm

    BGA Package:

    Dia. 0.14mm, BGA 0.2mm pitch

    Mounting Accuracy:

    ±0.035mm(±0.025mm) Cpk≥1.0 (3σ)

    SMT Capacity:

    3 Million~4 Million Soldering Pad/day

    DIP Capacity:

    100 Thousand Pins/day

    Assembly Capacity

    100 Thousand Pins/day

    Parts Sourcing:

    All components sourced by Cmy, Partial sourcing, Kitted/Consigned

    Parts Package:

    Reels, Cut Tape, Tube & Tray, Loose Parts and Bulk

    Testing:

    Visual inspection; AOI ; X-RAY ; Functional Testing,ICT

    Types of Solder:

    lead-free (RoHS Compliant) assembly services

    Assembly Option:

    From SMT to Assy,conformal coating ,Press fit

    Stencils:

    Laser cut stainless steel stencilsNano stencil ,FG stencil

    File Formats:

    Bill of MaterialsPCB(Gerber Files)Pick-N-Place File (XYRS)

    Quality Grade:

    IPC-A-610,IPC-A-600

    Our Main Service

    Vehicle control system
    • Electronic components material purchasing.
    • Bare PCB fabrication.
    • PCB Assembly Service. (SMT, BGA, DIP).
    • FULL Test: AOI, In-Circuit Test (ICT), Functioal Test (FCT).
    • Cable, Wire-harness assembly,sheet metal,Electrical cabinet Assembly service.
    • Conformal coating service.
    • Prototyping and mass production...

    PCBA ODM service

    China EMS Manufacturers
    • PCB &PCBA  Design
    • Components Sourcing
    • IC Programming
    • PCB fabrication
    • SMT  Building
    • DIP Production
    • PCBA Functional Test
    • Conformal Coating
    • Press Fit
    • COB Process
    • Laser Engraving
    • Box Building
    • We focus on the development of global businesses in the furture, OEM,ODM and EMS manufacturing services the main Applications include as follow ,But not limited :
    • Home Appliances
    • Industrial Control
    • Medical Care Device
    • Module PCBA
    • Communication
    • Automotive Vehicles
    • Consumer Electornics
    • LED Lighting

    Shipping Information

    Industrial automation control system
    FOB Port Shenzhen
    Weight per Unit 80.0 Grams
    HTS Code 8534.00.10 00
    Export Carton Dimensions L/W/H 48.0 x 45.0 x 38.0 Centimeters
    Logistics attributes Common
    Lead Time 25–35 days
    Dimensions per Unit 22.0 x 18.0 x 1.6 Centimeters
    Units per Export Carton 190.0
    Export Carton Weight 2.0 Kilograms



    Main Export Markets

    Vehicle control system
    • - Asia
    • - Australasia
    • - Central/South America
    • - Eastern Europe
    • - Mid East/Africa
    • - North America
    • - Western Europe
