SX1280 wireless serial port transmission module 2.4G LoRa UAV flight control parking magnetic Internet of Things module

All parameters can be freely set, more flexible use

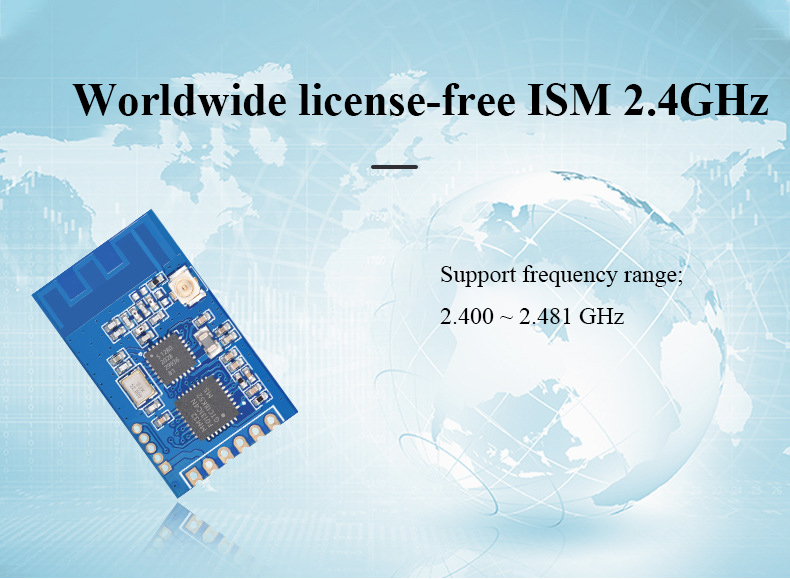

Channel :82 can be configured with 2400 2481MHz
Speed: 0.2-520kbps for 10 rates
ID Configuration :256 ids can be configured
Power :4 adjustable power 0-13dBm
LoRa/FLRC modulation mode
Both methods are automatically selected according to the set rate
LoRa mode: Low speed long-distance communication
FLRC mode: Fast medium and long distance communication

Multiple transmission modes
82 data channels can be freely selected.256 can be configured with ID
Fixed-point communication mode: The internal address filtering module can communicate with each other when the same channel, rate, PID
Broadcast communication mode: The same channel, rate, PID can communicate with each other
Fixed-point broadcast communication mode: transparent communication within the same channel

Product parameter
