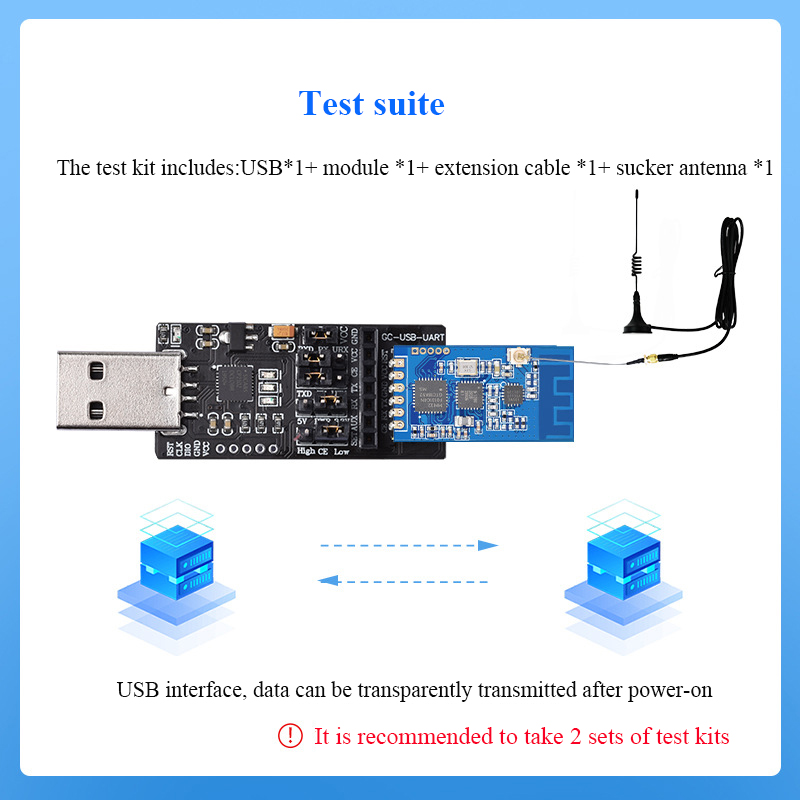

SX1280PA+LNA High power LoRa medical equipment UAV flight control remote spike intersection indication

Short Description:

Communication interface: UART

Sensitivity: -132 DBM

Application fields: Medical equipment, UAV flight control and remote control applications

Operating voltage: 3.3V

Data format: UART

Dimensions: 29.64*15.85mm

Product Series :2400-TC014


Product Detail

Product Tags

Multiple transmission modes
82 data channels can be freely selected.256 can be configured with ID
Fixed-point communication mode: The internal address filtering module can communicate with each other when the same channel, rate, PID
Broadcast communication mode: The same channel, rate, PID can communicate with each other
Fixed-point broadcast communication mode: transparent communication within the same channel
All parameters can be freely set, more flexible use

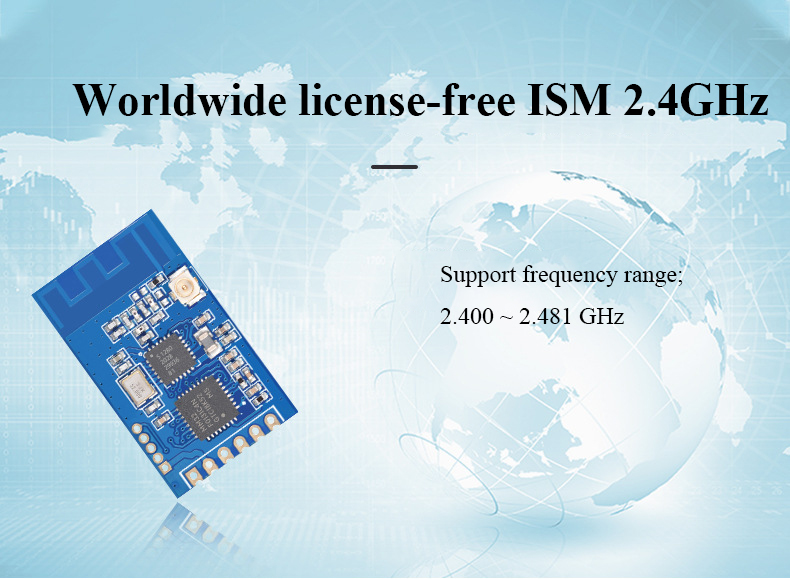

Channel :82 can be configured with 2400 2481MHz
Speed: 0.2-520kbps for 10 rates
ID Configuration :256 ids can be configured
Power :4 adjustable power 0-13dBm
LoRa/FLRC modulation mode
Both methods are automatically selected according to the set rate
LoRa mode: Low speed long-distance communication
FLRC mode: Fast medium and long distance communication

Product parameter

Parameter

 p1arameter-

parameter-2

Product model

GC2400-TC013

GC2400-TC014.

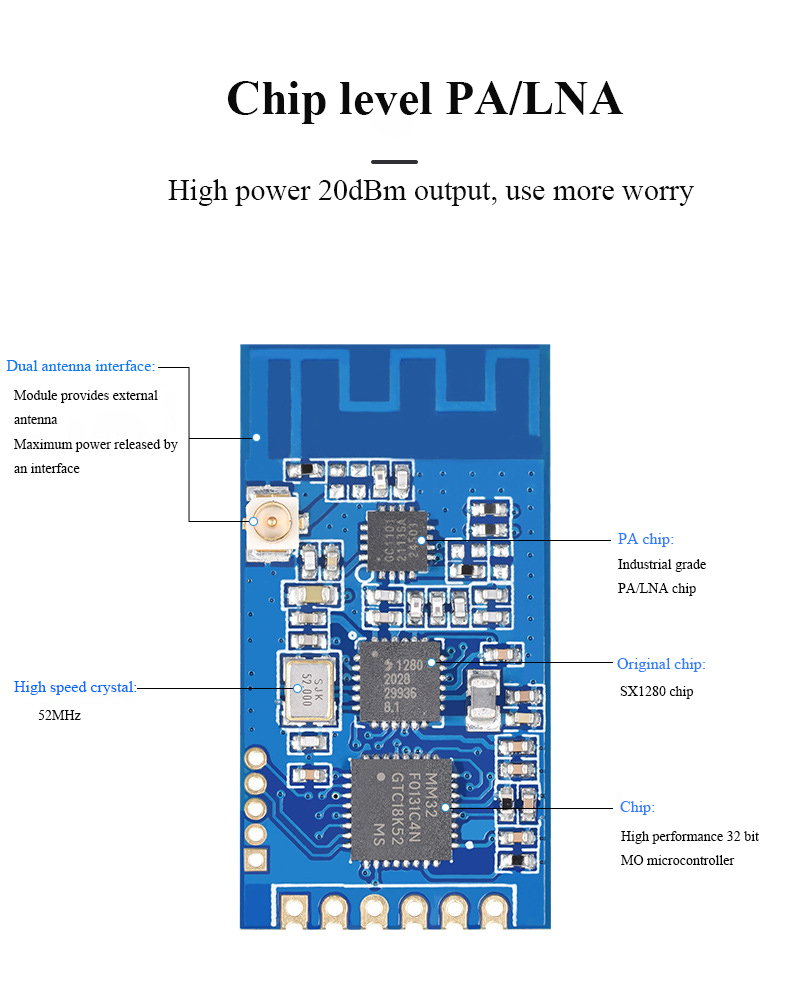

Chip scheme

SX1280

SX1280

Operating frequency band

2.4GHz

2.4GHz

Maximum output power

13dBm

20dBm

Receiving sensitivity

-130dBm@0.2Kbps

-132dBm@0.2Kbps

Emission current

50mA

210mA

Receiving current

14mA

21mA

Wireless rate

0.2Kbps-520Kbps

0.2Kbps-520Kbps

Typical supply voltage

3.3v

3.3v

Reference distance

2Km

3Km

Communication interface

UART

UART

Antenna interface

Onboard antenna/external antenna

Onboard antenna/external antenna

Encapsulation mode

Patch

Patch

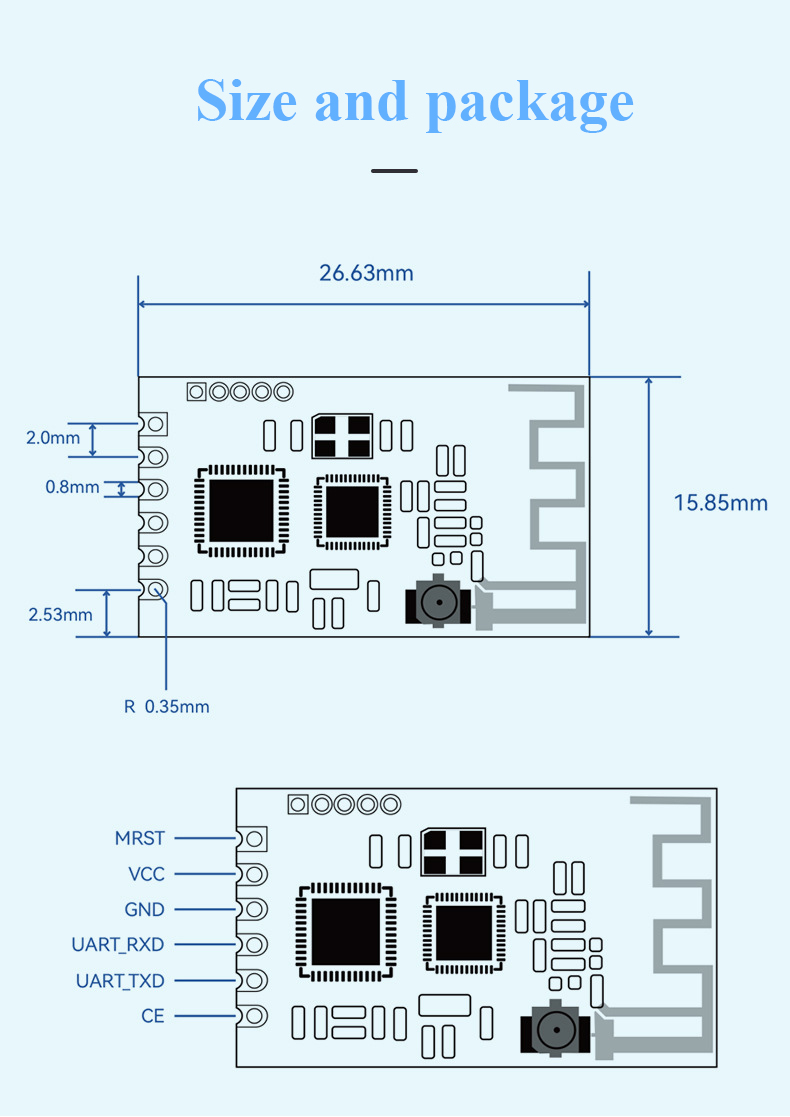

Module size

26.63* 15.85mm

29.64* 15.85mm

GC2400-TC013 and GC2400-TC014 can communicate directly with each other

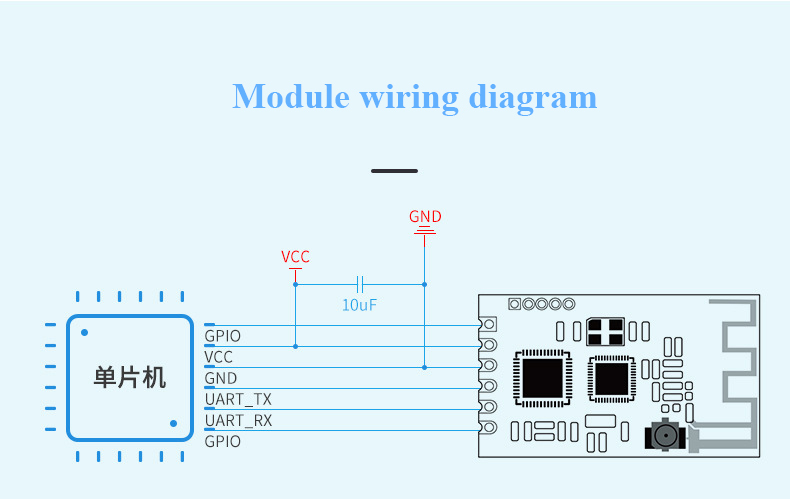

Pin function description

Serial number

Interface name

Function

1

MRST

Reset signal, low level effective, normal use pull up or suspended

2

VCC

Power supply +3.3V

3

GND

Load

4

UART_ RXD

Serial port receiving pin

5

UART_ TXD

Serial port launch pin

6

CE

Module SLEEP control pin, effective when the module is enabled in low power mode, the default is off (high level or suspended module enters the SLEEP mode, low level drop edge to wake up the module, after waking up need to delay more than 2ms to work normally)

4 5 7 8 9 10 12
