Wildfire LubanCat Zero Wireless version of the card computer image processor RK3566 development board

Short Description:

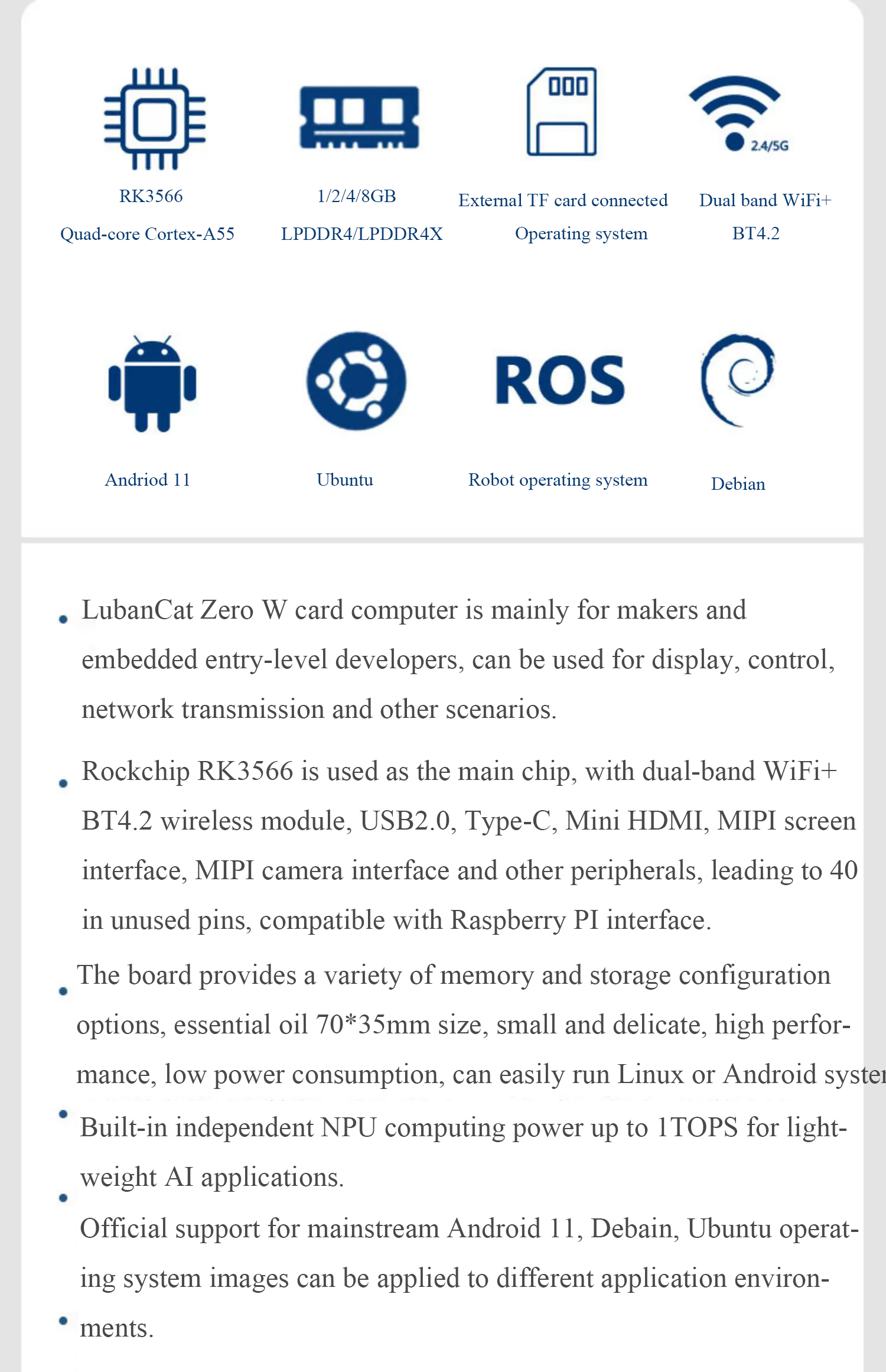

LubanCat Zero W card computer is mainly for makers and embedded entry-level developers, can be used for display, control, network transmission and other scenarios.

Rockchip RK3566 is used as the main chip, with dual-band WiFi+ BT4.2 wireless module, USB2.0, Type-C, Mini HDMI, MIPI screen interface and MIPI camera interface and other peripherals, leading to 40pin unused pins, compatible with Raspberry PI interface.

The board provides a variety of memory and storage configuration options, essential oil 70*35mm size, small and delicate, high performance, low power consumption, can easily run Linux or Android system.

Built-in independent NPU computing power up to 1TOPS can be used for lightweight AI applications.

Official support for mainstream Android 11, Debain, Ubuntu operating system images, can be applied to different application environments.


Product Detail

Product Tags

Board name LubanCat Zero W (Wireless version)
Power interface 5V@3A indicates the DC input and Type-C interface
Master chip RK3566(quad-core Cortex-A55,1.8GHz,Mali-G52)
Internal memory 1/2/4/8GB,LPDDR4/4x,1056MHz
TF card holder Support Micro SD(TF) card boot system, up to 128GB
Wireless network 802.11ac dual-band wireless network card, up to 433Mbps; Bluetooth supports BT4.2 protocol
USB2.0 Type-C interface *1(OTG), shared with the power interface;
Type-C interface *1(HOST), which cannot be used for power supply
Debug serial port The default parameter is 1500000-8-N-1
40Pin interface Compatible with Raspberry PI 40Pin interface, support PWM,GPIO,I2C,SPI,UART functions
HDMI Mini-hdmi 2.0 display interface, only support MIPI or HDMI display alone
MIPI-DSI MIPI screen interface, can plug the wildfire MIPI screen, only support MIPI or HDMI display alone
MIPI-CSI Camera interface, can plug the Wildfire OV5648 camera
According to the production situation, different batches may use different brands of LPDDR storage particles, please note, if you have special needs, please contact customer service

3

Vehicle control system

Comparison of parameters of Luban cat series

Model name

Luban cat 0 network port version

Luban Cat 0
Wireless version

Luban Cat 1

Luban Cat 1
Online edition

Luban Cat 2

Luban Cat 2
Online edition

Master control

RK35664 coreA55,1.8GHz,1TOPS NPU

RK3568
4CoreA55,
1.8GHz
1TOPS NPU

RK3568B2
4CoreA55,
2.0GHz
1TOPS NPU

Store
eMMC

  None eMMC
Use SD card for storage

8/32/64/128GB

Internal memory

1/2/4/8GB

Ethernet

Giga*1

/

Giga*1

Giga*2

2.5G*2
giga*2

WiFi/Bluetooth

/

Onboard

Available via PCle
External module

Onboard

External modules can be connected via PCle

USB port

Type-C*2

Type-C*1,USB Host2.0*1,USB Host3.0*1

HDMI port

mini HDMI

HDMI

Dimension

69.6×35mm

85×56mm

111×71mm

126×75mm

China EMS Manufacturers

Model name

Luban Cat 0
Net interface version

Luban Cat 0
Wireless version

Luban Cat 1

Luban Cat 1
Online edition

Luban Cat 2

Luban Cat 2
Online edition

MIPI DSI
Display interface
(4Lane)

MIPI CSI
Camera interface
(4Lane)

40pin GPIO
Pin arrangement interface

Audio output

X

×

Infrared receiver

×

X

PCle interface
(Can be connected to external WiFi
4G modules)

X

×

X

PCBA manufacturer in China

Military control system
